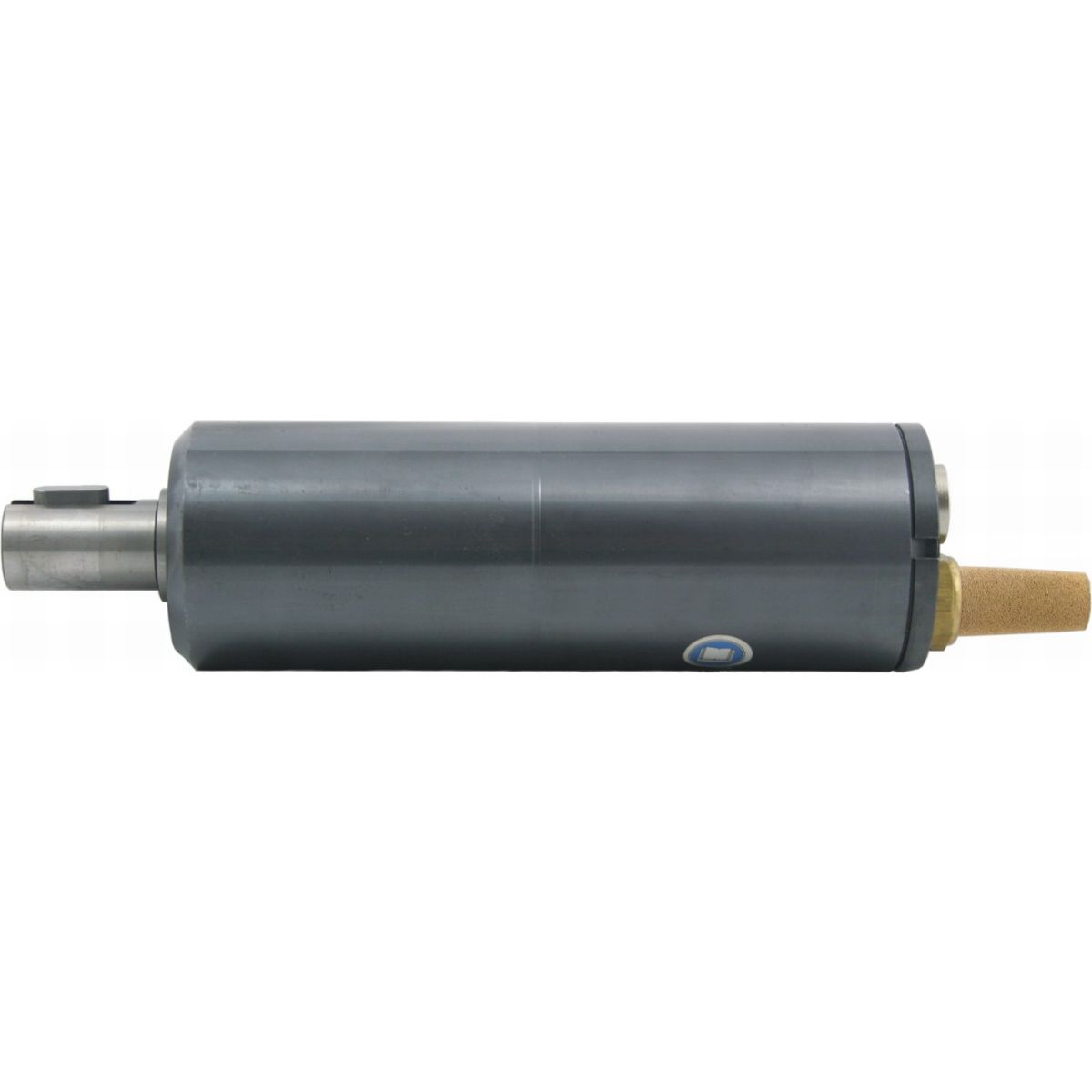

ME80/70 U Air vane motor
| Power: | 0.645 kW |
|---|---|
| Free speed: | 700 min-1 |
| Direction of rotation: | Reversible |
| Chuck: | Shaft-hub-connection Ø 24 h7 |
| Current: | Pneumatic |
Product number:
53183800
Ölfreier Betrieb möglich
Low-vibration type
ME80/70 U Air vane motor
Applications
This air motor with vane drive is intended for installation in machines, e.g. as drive units on conveyor belts, in machine tools, feed or entrainment devices, in the food or packaging industry, on production lines or for installation in hand-guided special machines.
Power: 645 W
Free Speed: 700 min-1
The air vane motors have low-noise and low-vibration values, start precisely and they are reversible.
They are equipped with a shaft-hub connection according to DIN 6885 form A.
The motors can optionally be equipped with shaft Ø 13 mm or thread 3/8" x 24 UNF.
The durable air vane motors are low-maintenance, and wear parts can be changed fast and easily.
Technical specifications
Free Speed: 700 min-1
Air vane motor from manufacturer ME80/70U - powerful, reversible and reliable
The 0.645 kW air motors can be operated oilfree.The air vane motors have low-noise and low-vibration values, start precisely and they are reversible.
They are equipped with a shaft-hub connection according to DIN 6885 form A.
The motors can optionally be equipped with shaft Ø 13 mm or thread 3/8" x 24 UNF.
The durable air vane motors are low-maintenance, and wear parts can be changed fast and easily.
| Power: | 0.645 kW |
|---|---|
| Free speed: | 700 min-1 |
| Speed under Load: | 350 min-1 |
| Starting Torque: | 49 Nm |
| Torque at max. Power: | 25 Nm |
| Direction of rotation: | Reversible |
| Chuck: | Shaft-hub-connection Ø 24 h7 |
| Construction form: | Straight |
| Weight: | 4.1 kg |
| Length [mm]: | 222 |
| Housing Ø: | 65 h8 mm |
| Recommended hose Ø: | 9 mm |
| Exhaust air: | Silencer 43 mm |
| Air consumption: | 18 l/s |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Max. Working pressure: | 7.0 bar |
| Information: | The figures shown are measured at a pressure of 6.3 bar (ISO 2787), the recommended working pressure. |
| Inlet air connection: | G 3/8" |
| Exhaust air connection: | G 1/2" |
