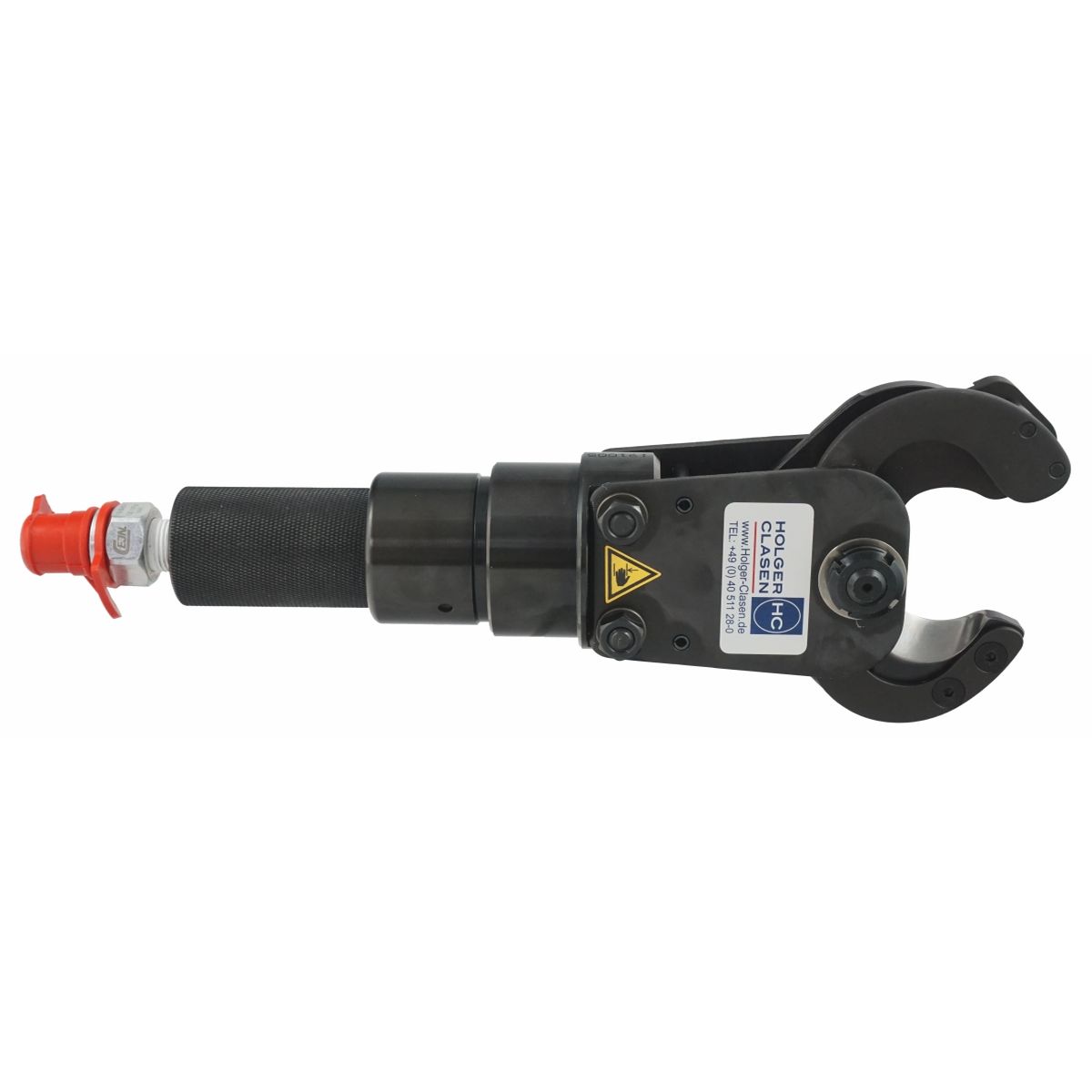

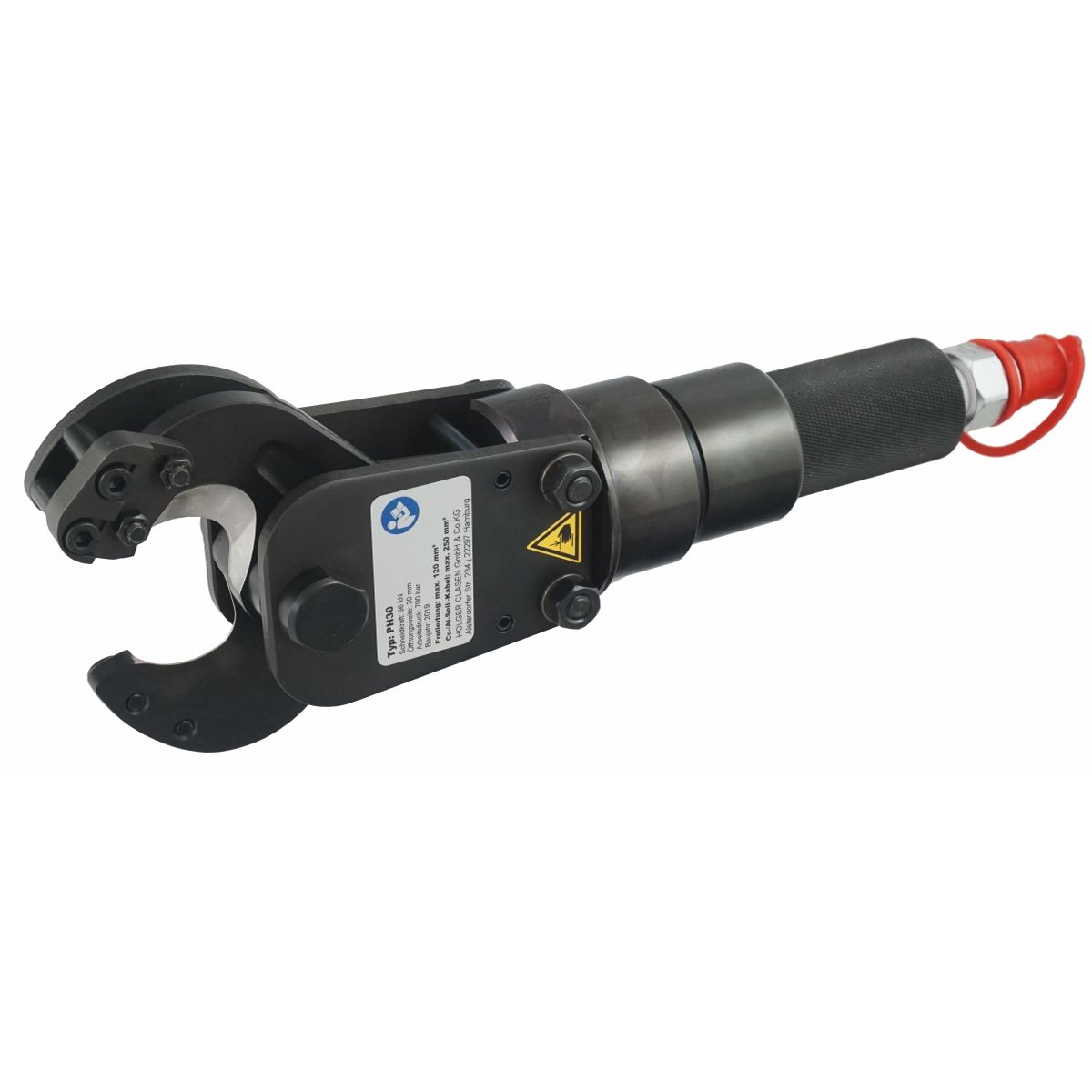

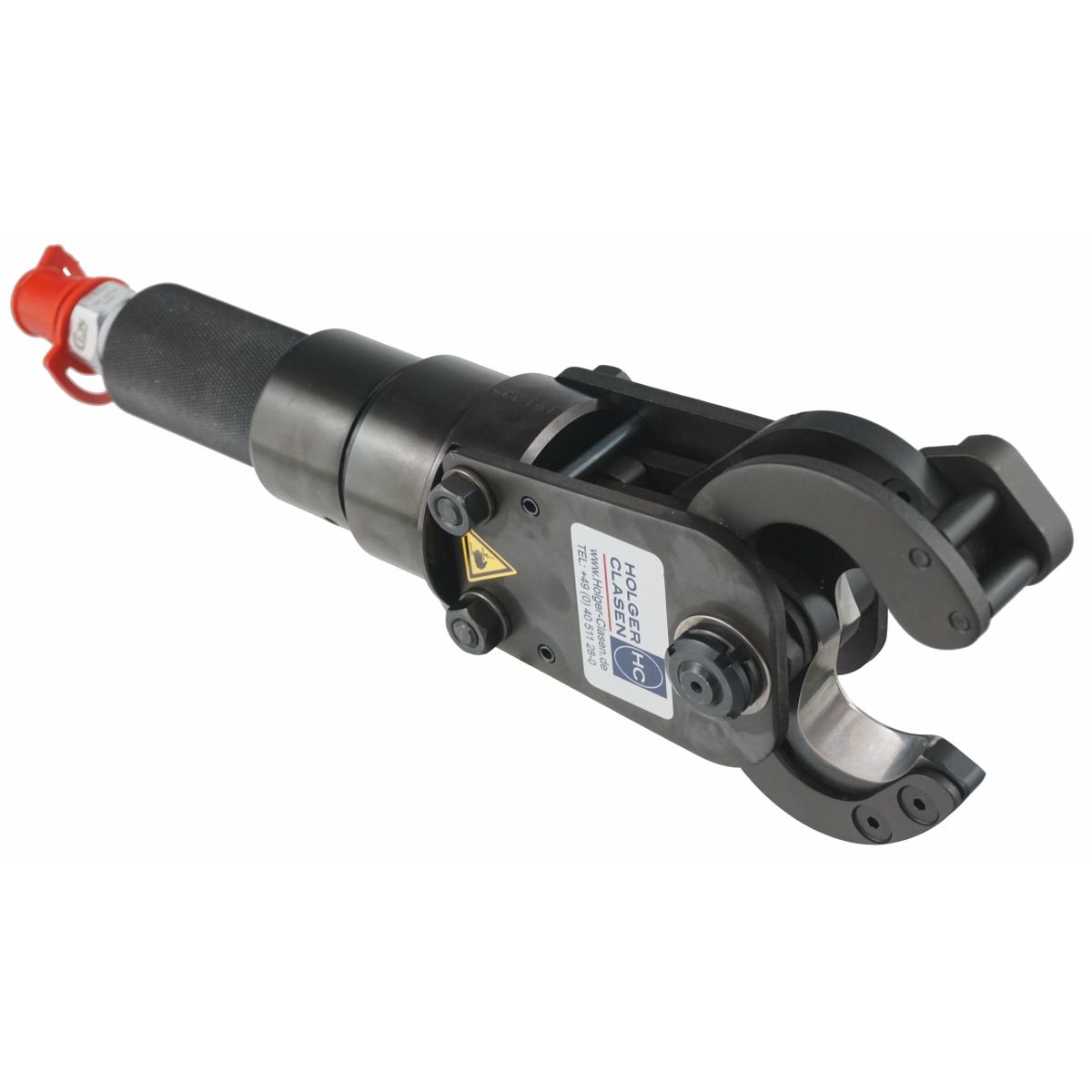

PH30 Hydraulic cutting head
| Cutting force: | 66 kN |
|---|---|
| Opening width: | 30 mm |
| Suitable for: | overhead lines |
| Hydraulic connection: | Nippel CEJN Serie 115 |
Product number:
72561500
PH30 Hydraulic cutting head
Applications
In conjunction with a separate pump, the PH 30 wire rope and cable cutter processes Al and Cu ropes and cables up to a diameter of 30 mm, in particular overhead lines up to 19 mm in diameter. It is used by energy supply companies, utility companies and their service providers as well as in industry and traffic engineering.
Optimum cut with low conductor deformation
Open, semicircular blade geometry
For work in confined spaces
66 kN cutting force
Can be combined with standard hydraulic pumps.
The Wire rope and cable cutter PH30 with its semicircular cutting blades and open geometry produces optimum cuts with low deformation of the conductor. The open blades enable cutting even in confined spaces. With only 3.2 kg weight and 66 kN cutting force it is a good entry-level tool and cuts Al and Cu ropes as well as Al and Cu cables up to a diameter of 30 mm . Even overhead lines up to 19 mm diameter can be handled by the power pack. The PH 30 also convinces with its low maintenance requirements and easy handling. In the accessories you will find a wide selection of hydraulic pumps. The cable cutter can also be connected to other pumps on the market.
Technical specifications
Open, semicircular blade geometry
For work in confined spaces
66 kN cutting force
Can be combined with standard hydraulic pumps.
The Wire rope and cable cutter PH30 with its semicircular cutting blades and open geometry produces optimum cuts with low deformation of the conductor. The open blades enable cutting even in confined spaces. With only 3.2 kg weight and 66 kN cutting force it is a good entry-level tool and cuts Al and Cu ropes as well as Al and Cu cables up to a diameter of 30 mm . Even overhead lines up to 19 mm diameter can be handled by the power pack. The PH 30 also convinces with its low maintenance requirements and easy handling. In the accessories you will find a wide selection of hydraulic pumps. The cable cutter can also be connected to other pumps on the market.
| Cutting force: | 66 kN |
|---|---|
| Opening width: | 30 mm |
| Suitable for: | overhead lines |
| Weight: | 3.2 kg |
| Length [mm]: | 310 |
| Working pressure: | 700 bar |
| Hydraulic connection: | Nippel CEJN Serie 115 |
| Head: | open |
