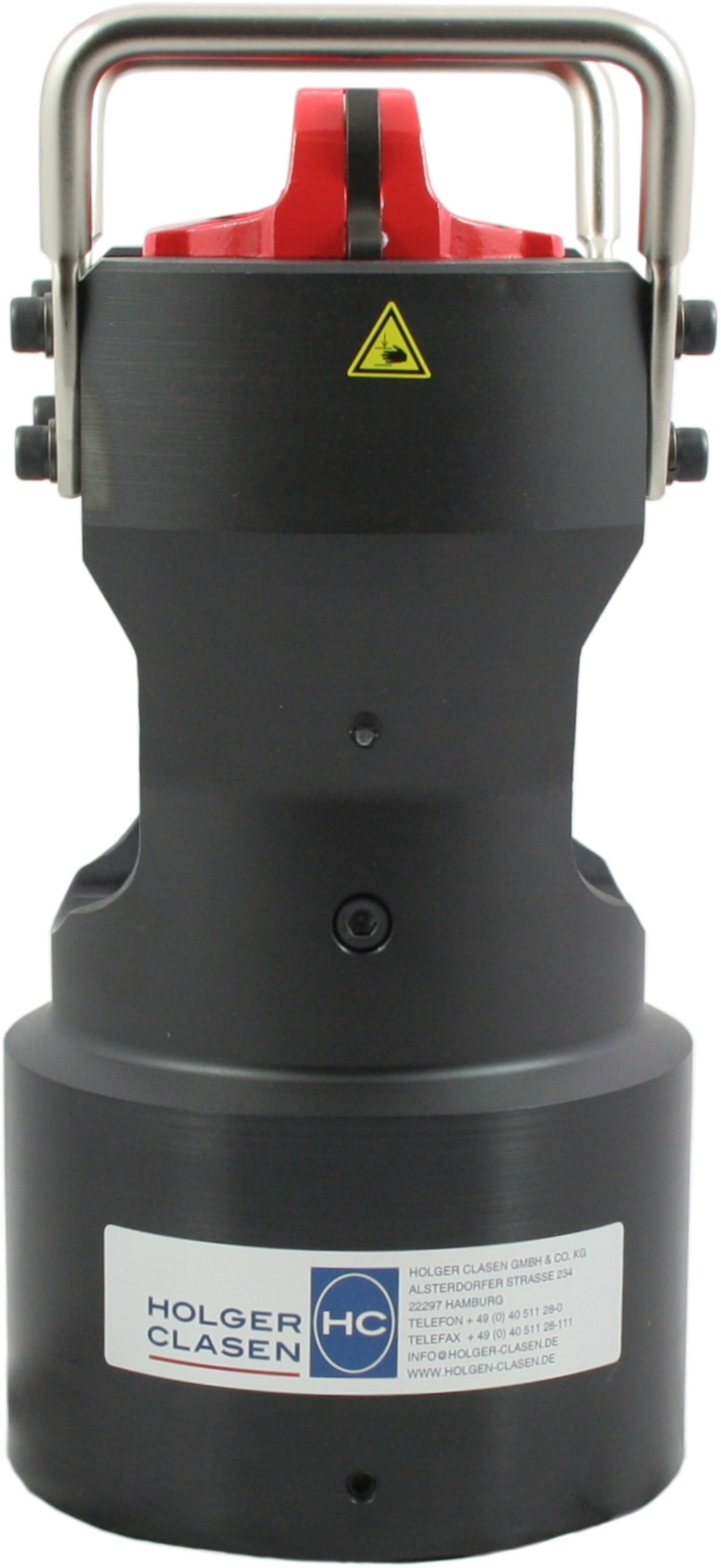

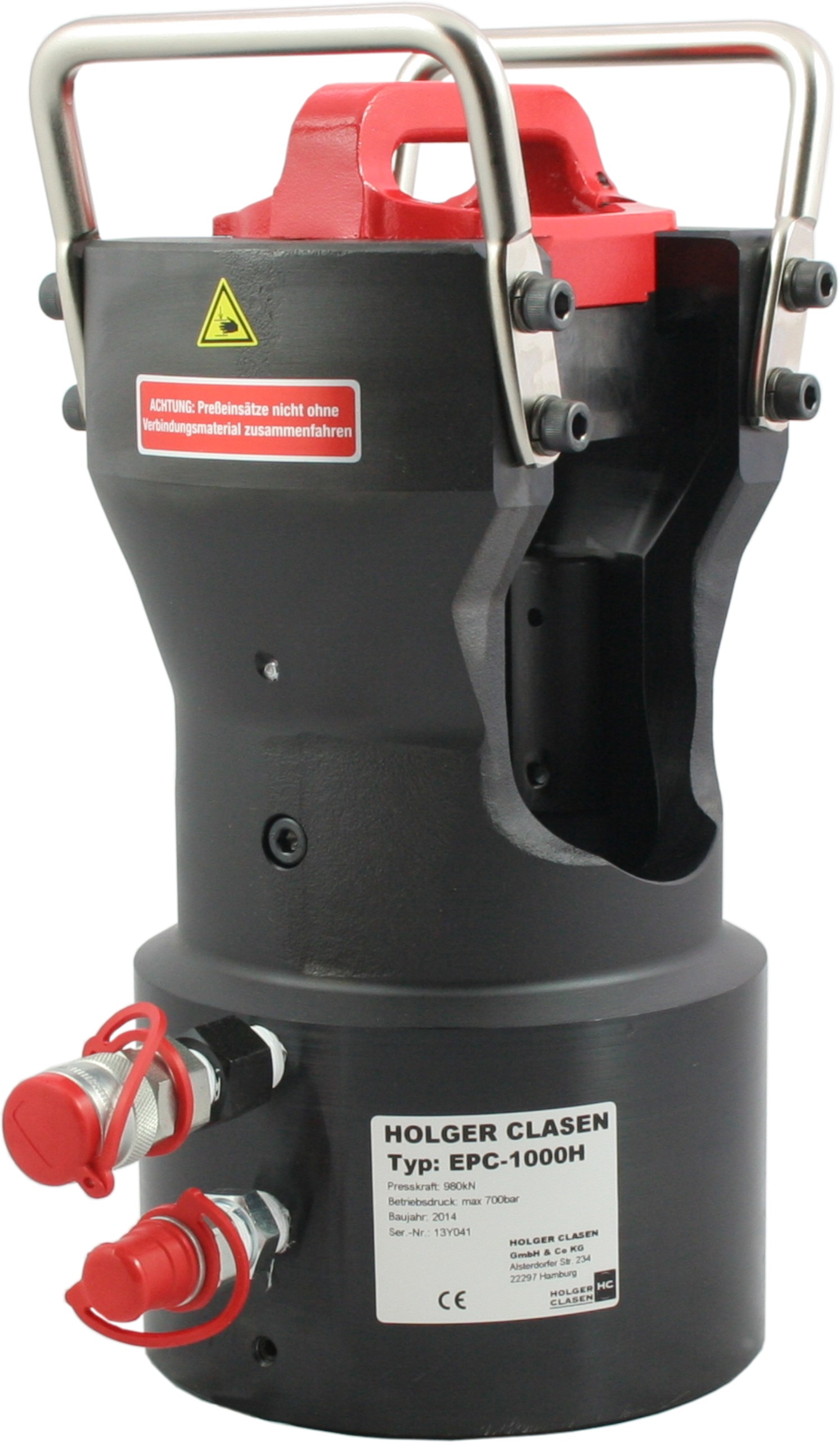

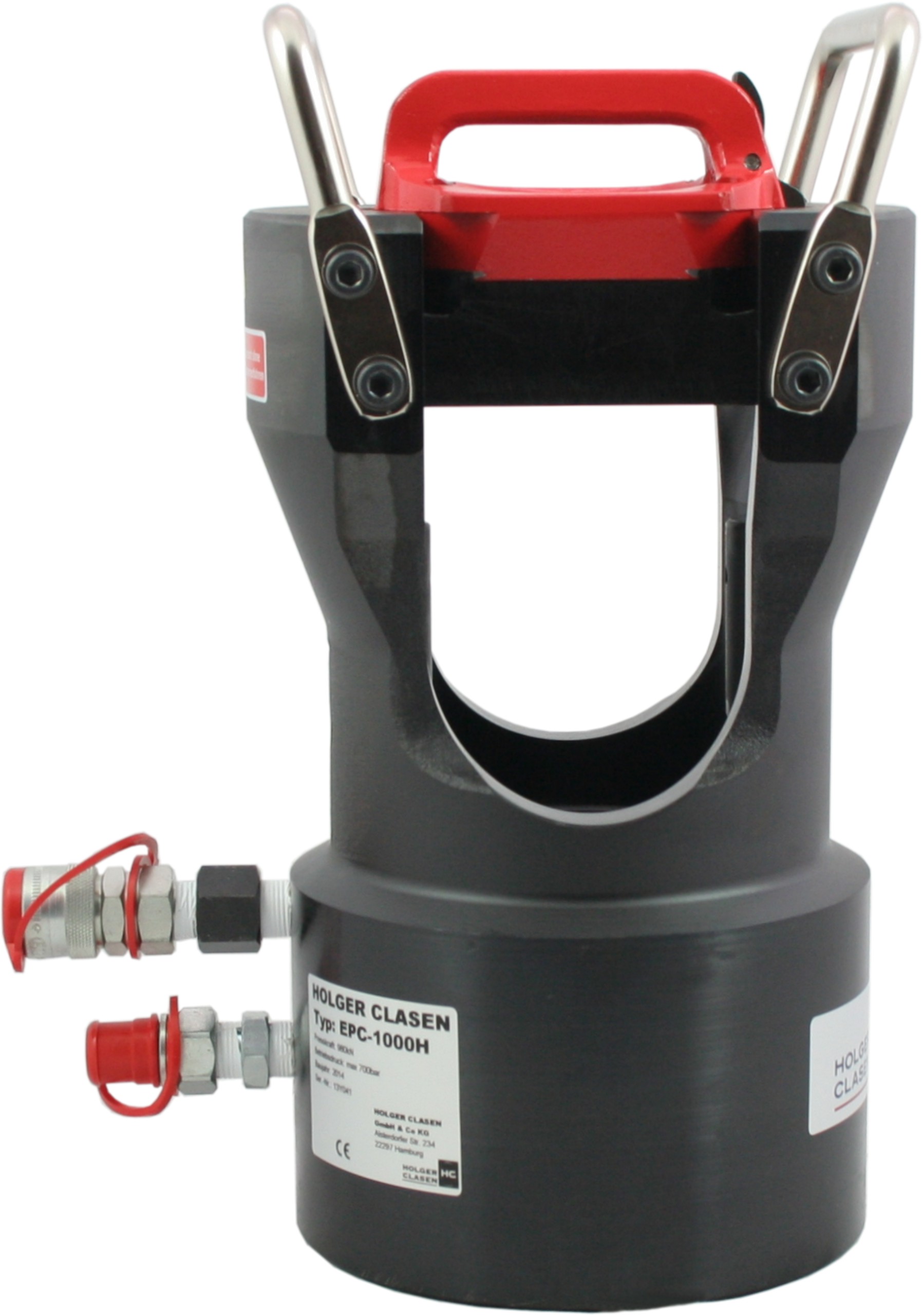

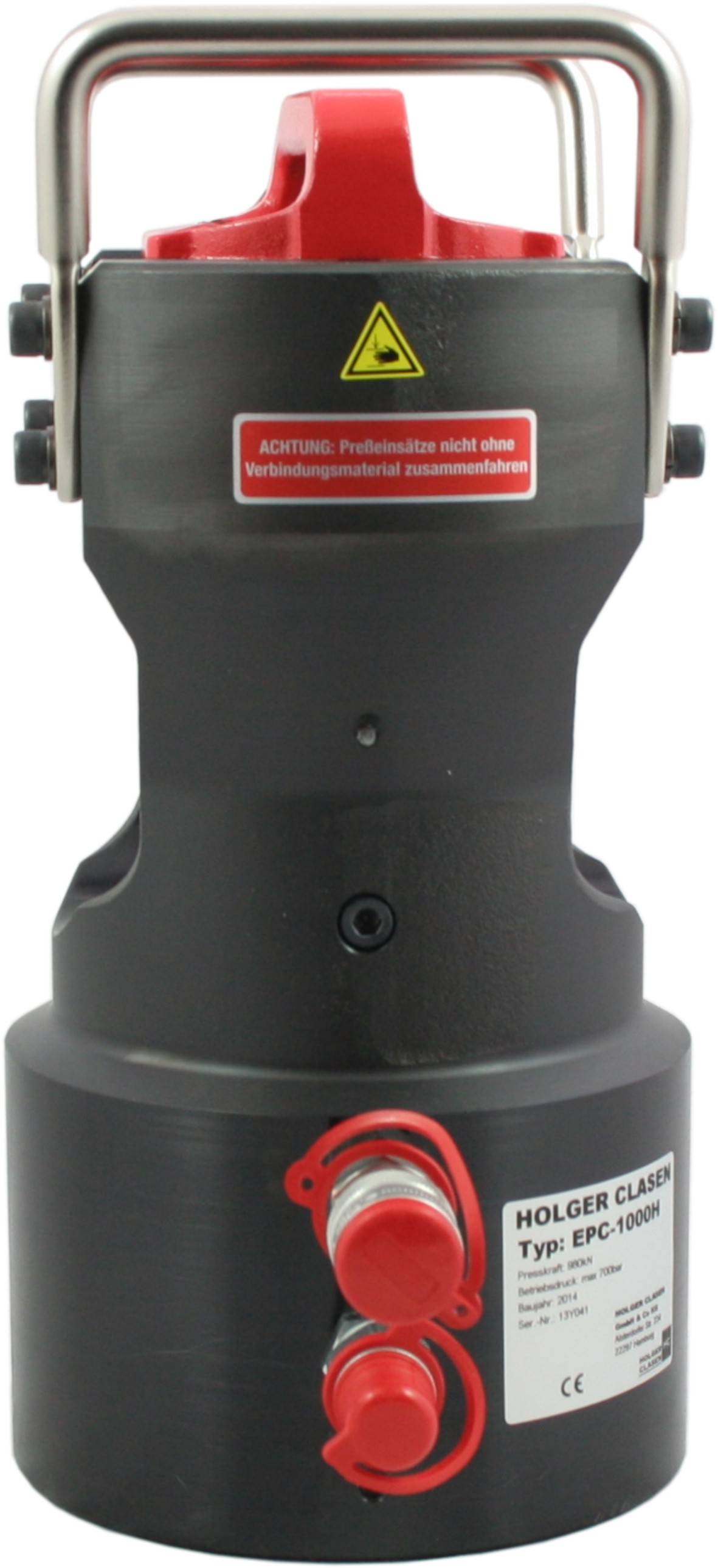

EPC1000-H Hydraulic crimping head
Product number:
76573000
detail.
detail.PE_zylinder_Z1_hb
EPC1000-H Hydraulic crimping head
Applications
The double-acting hydraulic crimping head EPC 1000-H is designed for connection to a separate hydraulic pump. It crimps cable lugs and connectors up to 1,600 mm2 according to DIN. This crimping head is used in power supply companies, power plants and their service providers, in wind energy and in industrial applications.
Useable for large cross-sections of up to 1,600 mm2.
Particularly robust and low-maintenance design.
Can be combined with double-acting battery-operated hydraulic pump NP 1600-D or Petrol Hydraulic Pump BP1200-DM.
Technical specifications
Particularly robust and low-maintenance design.
Can be combined with double-acting battery-operated hydraulic pump NP 1600-D or Petrol Hydraulic Pump BP1200-DM.
| Crimping dies Series: | Zylindrisch (Z1) |
|---|---|
| Crimping force: | 980 |

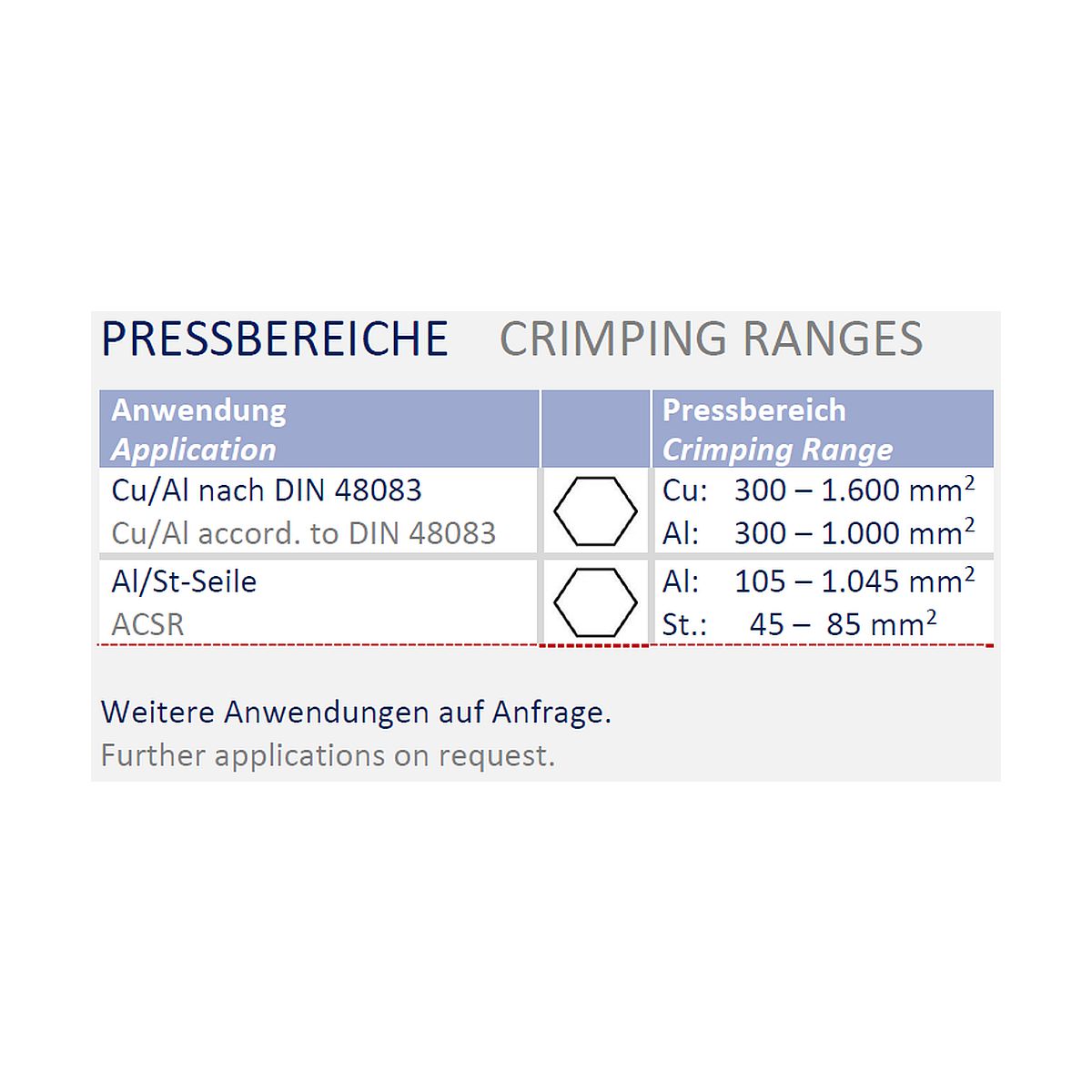

| Crimping range DIN Al: | 300 - 1000 |
| Crimping range DIN Cu: | 300 - 1600 |
| Equipment: | double-acting |
| Head: | geschlossen |
| Height: | 359 |
| Housing Ø: | 200 |
| Hydraulic connection: | Kupplung und Nippel (CEJN Serie 115) |
| Lock type: | Twist lock |
| Stroke: | 22 |
| Weight: | 32.0 |
| Working pressure: | 700 |
