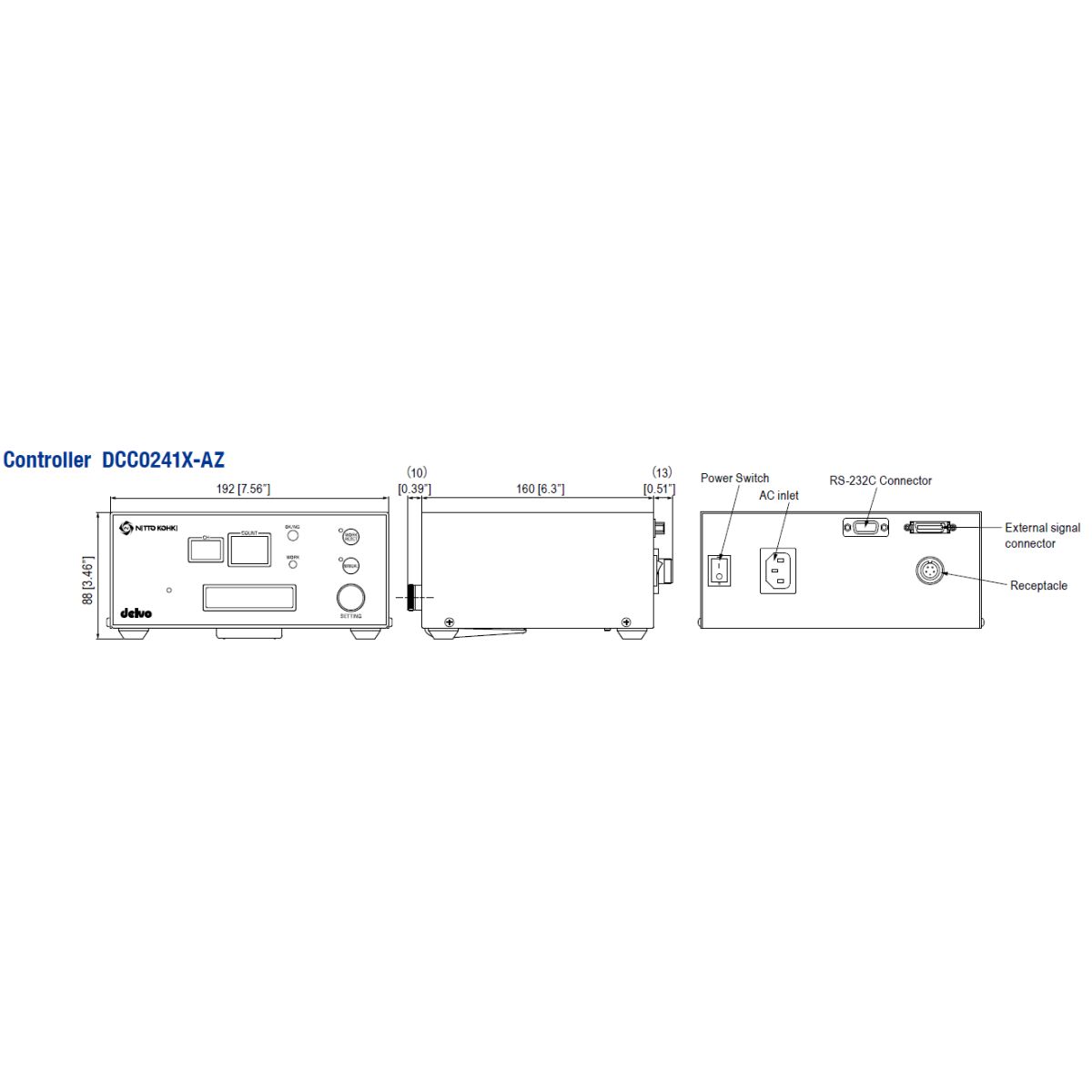

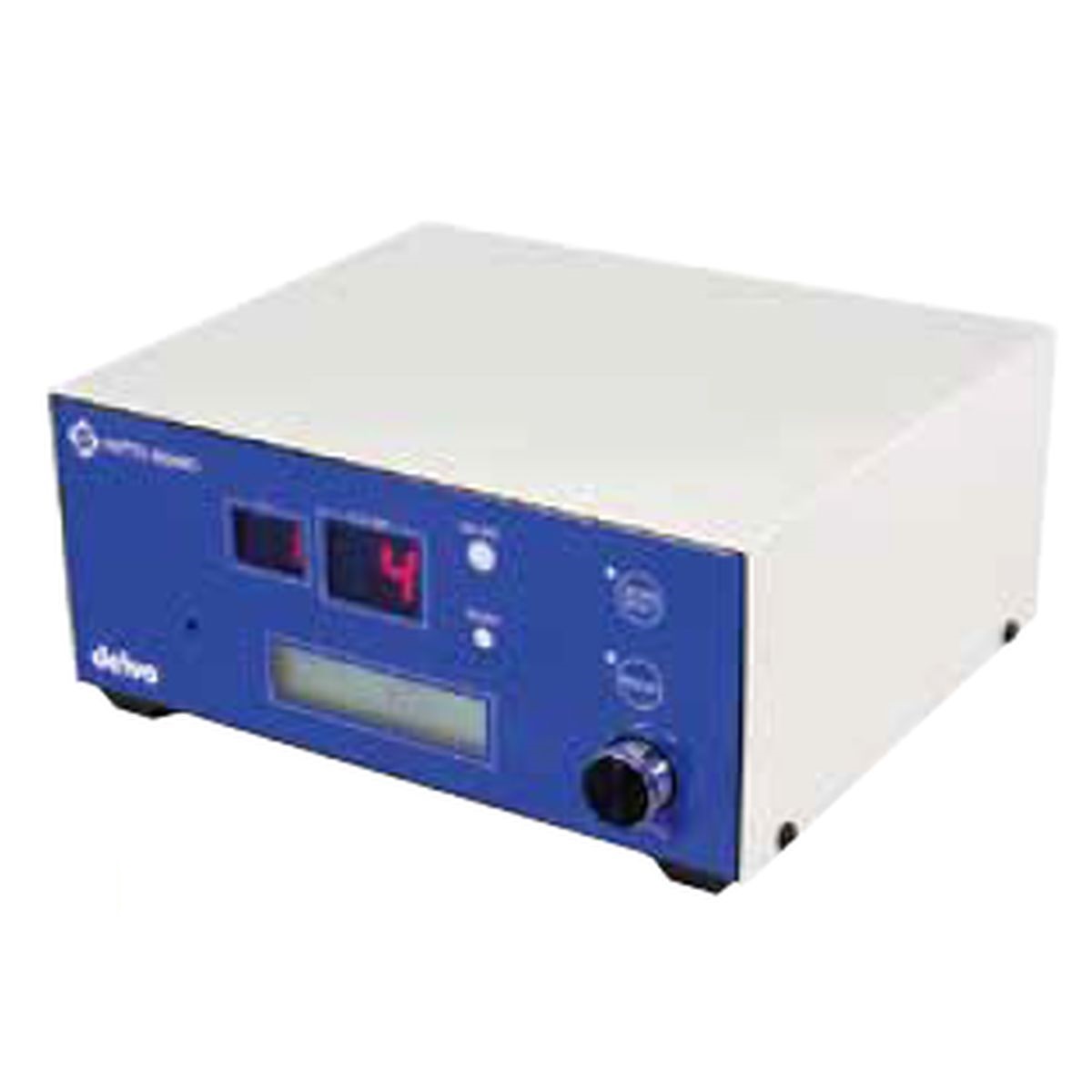

DCC 0241X-AZ Delvo Controler
| Voltage: | 100 - 240 V |
|---|---|
| Output voltage: | 40 V |
| ESD Protection: | yes |
| Variable Speed: | yes |
| Soft Stop: | yes |
| Soft Start: | yes |
Product number:
37999140
DCC 0241X-AZ Delvo Controler
Applications
DCC0241X-AZ controler for DLV45C series
Plug for usage in Europe
Power Source: 230 V AC, 50/60 Hz
Input Signal Method: Photocoupler input (24 V DC drive (5 mA/1 input), NPN/PNP switchable)
Output Signal Method: Photocoupler output (30 V DC or less, 80 mA/1 output or less, NPN/PNP switchable)
Electro-static discharge(ESD) control
The power cord for the controller (DLW9220 / DLW9240 / DLW9250) is sold separately.
Technical specifications
Power Source: 230 V AC, 50/60 Hz
Input Signal Method: Photocoupler input (24 V DC drive (5 mA/1 input), NPN/PNP switchable)
Output Signal Method: Photocoupler output (30 V DC or less, 80 mA/1 output or less, NPN/PNP switchable)
Electro-static discharge(ESD) control
The power cord for the controller (DLW9220 / DLW9240 / DLW9250) is sold separately.
| Voltage: | 100 - 240 V |
|---|---|
| Frequency: | 50/60 Hz |
| Output voltage: | 40 V |
| Weight: | 1.8 kg |
| ESD Protection: | yes |
| Variable Speed: | yes |
| Soft Stop: | yes |
| Soft Start: | yes |
Included in delivery:

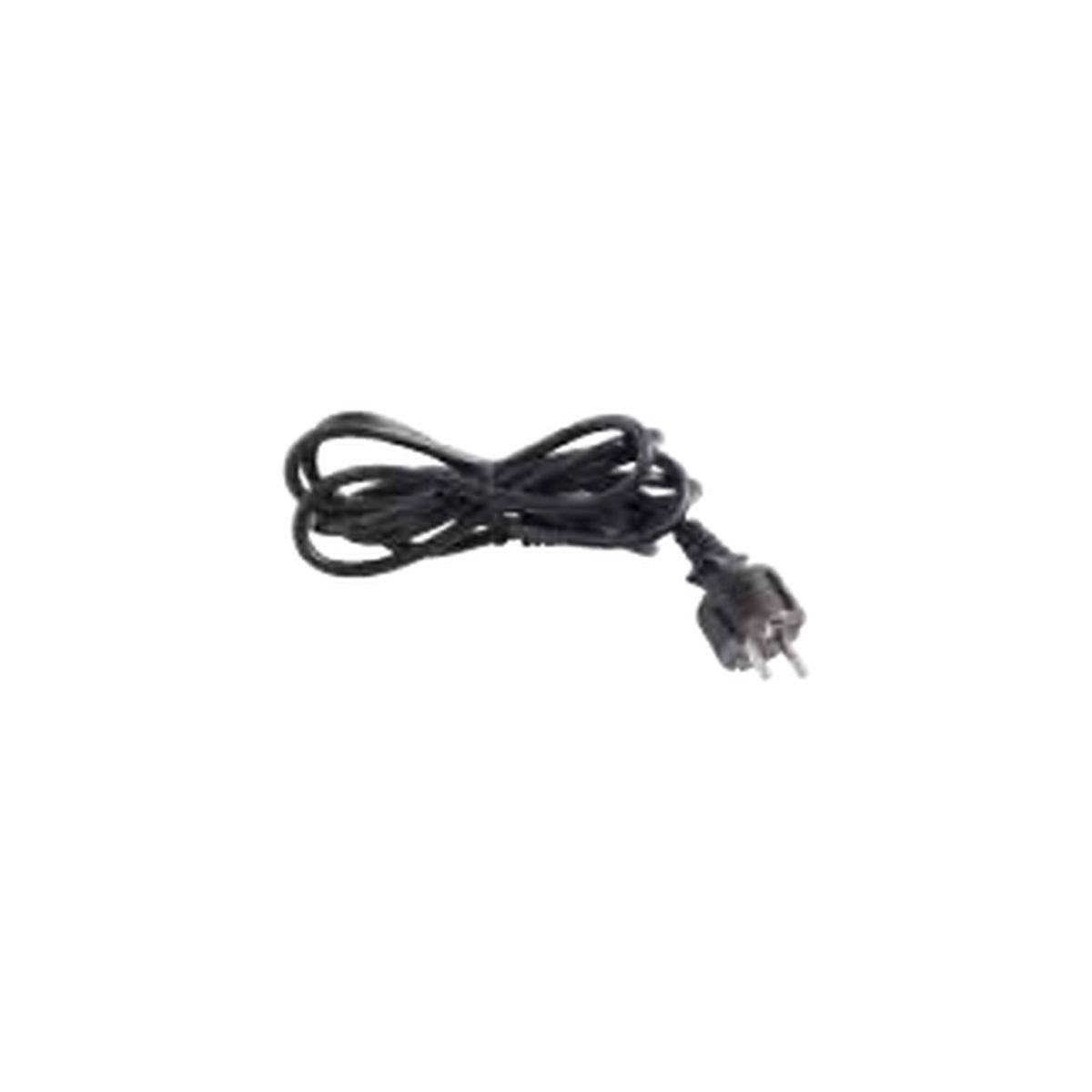

The power cord 2 m (DLW9240) is sold separately.
Options
