TG6/100 Tapper P-SWF
Product number:
46100900
Ölfreier Betrieb möglich

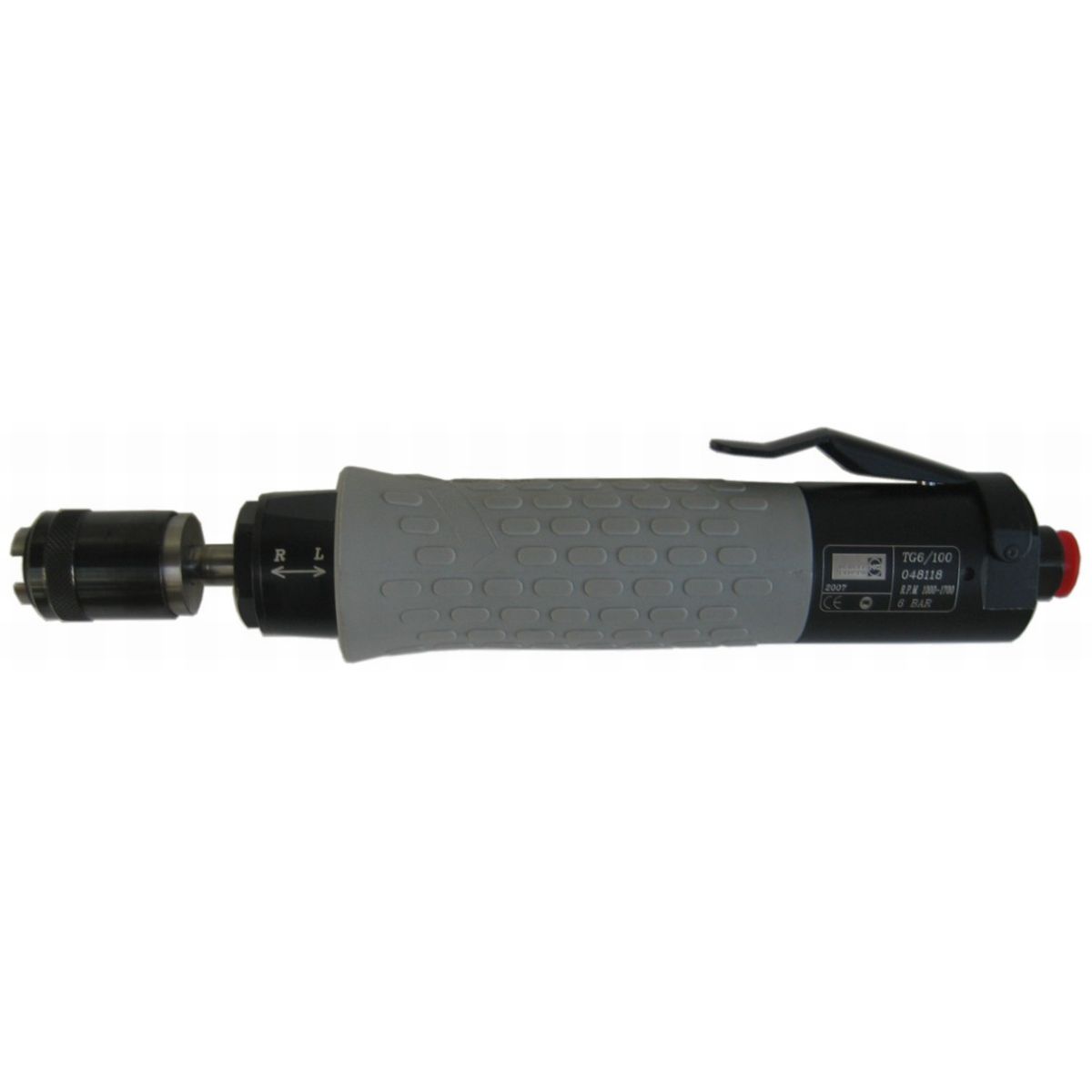

TG6/100 Tapper P-SWF
Applications
The Compressed Air Tapper TG6/100 with precision quick-change chuck is an ideal tool for cutting very precise threads or in combination with coupling for cutting blind holes. Materials such as plastic, wood, aluminium, bronze, brass, cast iron, alloyed and unalloyed steels can be machined. The air tapper is used in the metal industry, car body construction, plastics processing, the wood industry, in apparatus and container construction as well as by repair stores.
Air tapper TG6/100 - for fully centered tapping
With precision quick-change chuck P-SWF, type 0Cuts thread into:
Alloy steel: max. Ø max. 4 mm
Cast iron, unalloyed steel: Ø max. 6 mm
Aluminium, brass, bronze: Ø max. 10 mm
Quick changing of the tap holder/tapper
Long service life with high performance.
Oil-free operation possible
Select the straight design for working in vertical direction. The air tapper is started comfortably via a valve lever and pressure. Switching on at low speed makes it easier to place the tapper on the previously placed core hole. The tool is reversible, which can be achieved by pulling the tool. The return is at double speed, thus ensuring efficient work, especially during the production process.
The holder is a precision quick-change chuck, type 0 (Ø 23 mm). Select the desired tap holder, it is not included in the delivery. It must be selected according to the used tap insert. You have the choice between holders without coupling or with coupling for cutting blind holes. Please contact us, we will be pleased to advise you for a perfectly fitting combination.
Tap holder is not included.
