GG5/700-SP 3 Straight grinder
| Power [W]: | 50 W |
|---|---|
| Speed: | 70000 min-1 |
| Chuck: | Collet chuck (Ø 3 mm) |
| Current: | Pneumatic |
Product number:
10115000
Ergonomic
Light-weight/small
Ölfreier Betrieb möglich
Low-vibration type

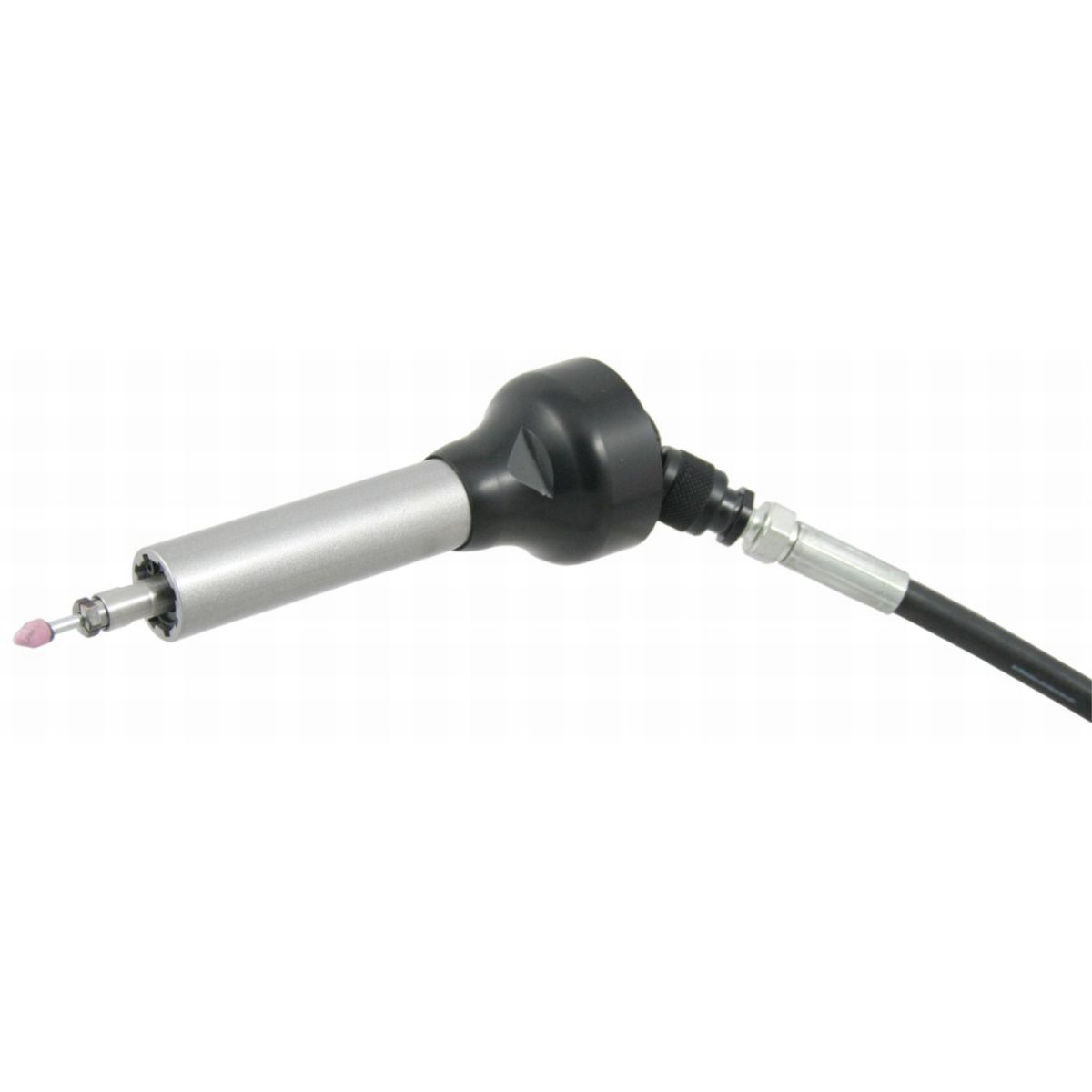

GG5/700-SP 3 Straight grinder
Applications

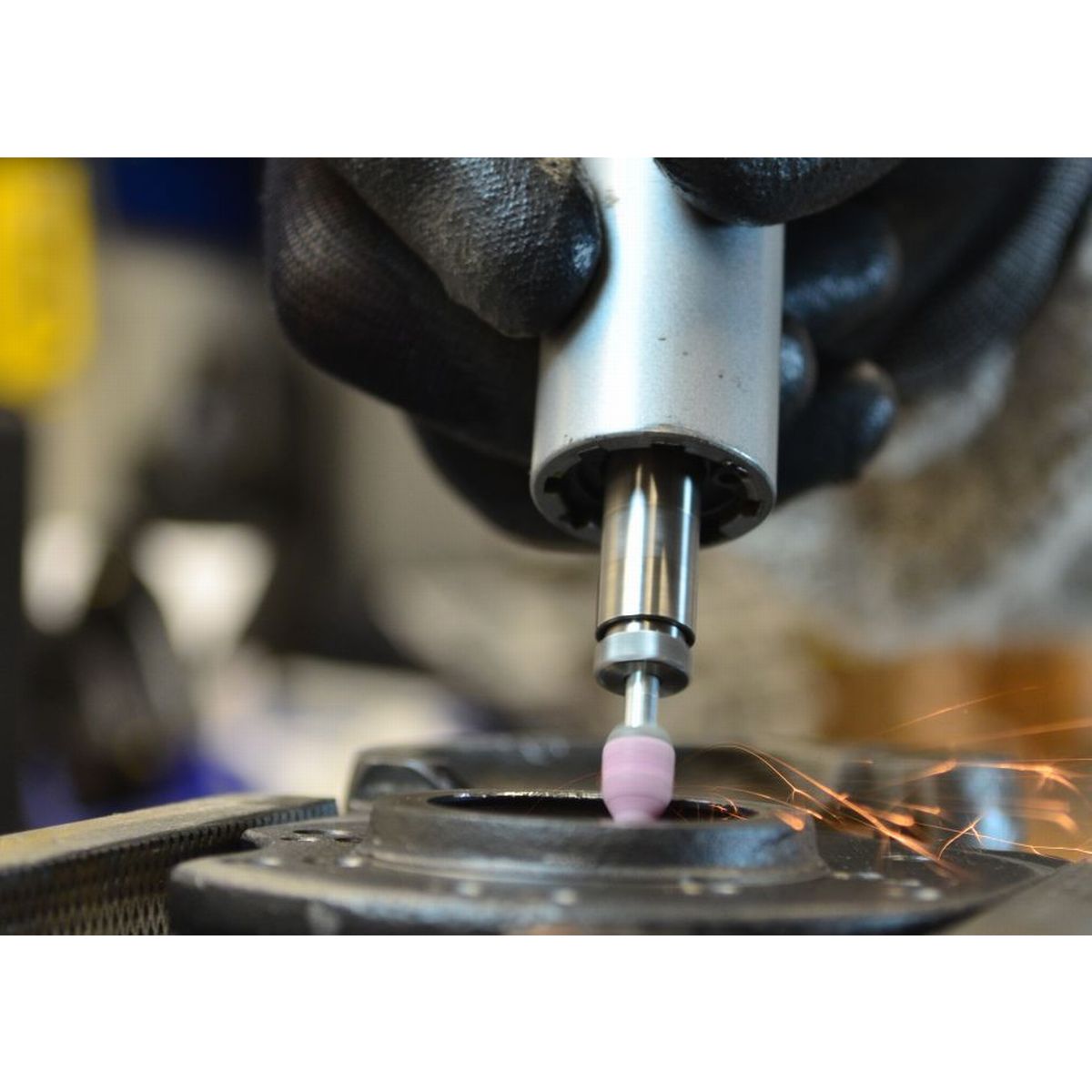

The air powered turbine grinder GG5/700-SP3 is a high speed turbine grinder and ideally for precise, smooth grinding jobs. The air die grinder includes a wide range of accessories in a case. For milling and grinding in modul making and machine building - with special requirements to speed and precision.
Turbine grinder GG5/700-SP - for specially precise, detailed works.

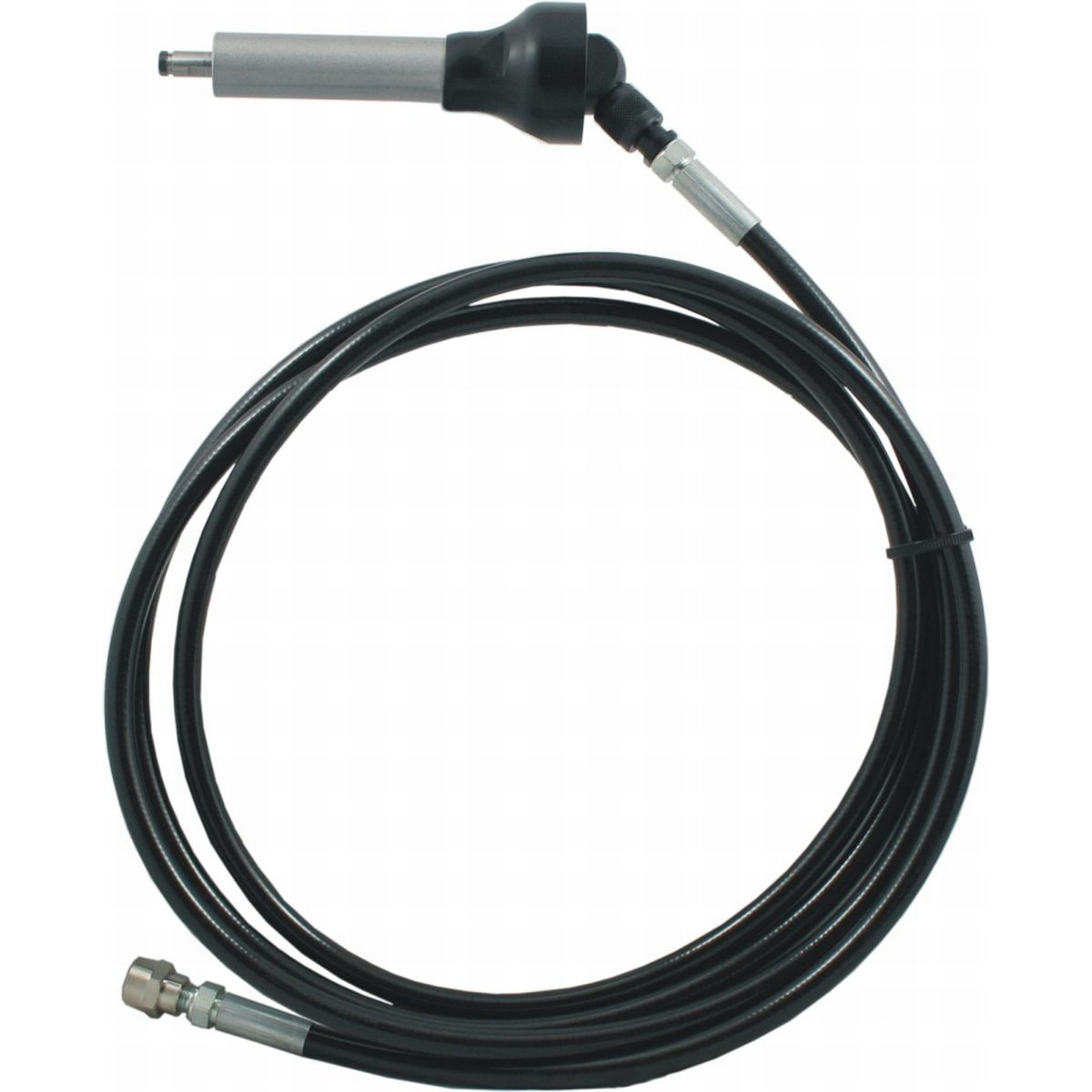

Air powered high speed turbine grinder with collet chuck Ø 3 mm for very precise grinding jobs.Very small, handy and lightweight grinding tool.
The ergonomic design allows a smooth, precise use.
The exhaust air, leaded away in front of the tool, cools down and removes dust from the work piece.
The pneumatic straight grinder starts by sliding valve.
| Power [W]: | 50 W |
|---|---|
| Speed: | 70000 min-1 |
| Chuck: | Collet chuck (Ø 3 mm) |
| Clamping Range Ø: | 3 mm |
| Start: | Slide valve |
| Construction form: | Straight |
| Equipment: | Exhaust air front side |
| Exhaust air: | front side |
| Accessory max. Ø: | 10 mm |
| Housing Ø: | 50 mm |
| Length: | 182 mm |
| Weight: | 0.3 kg |
| Information: | Weight without hose |
| Inlet air connection: | Tool: G 1/8" Hose: G 1/4" |
| Air consumption: | 2.5 l/s |
| Sound pressure level: | 67 dB(A) |
| Sound power level: | 72 dB(A) |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
Included in delivery:

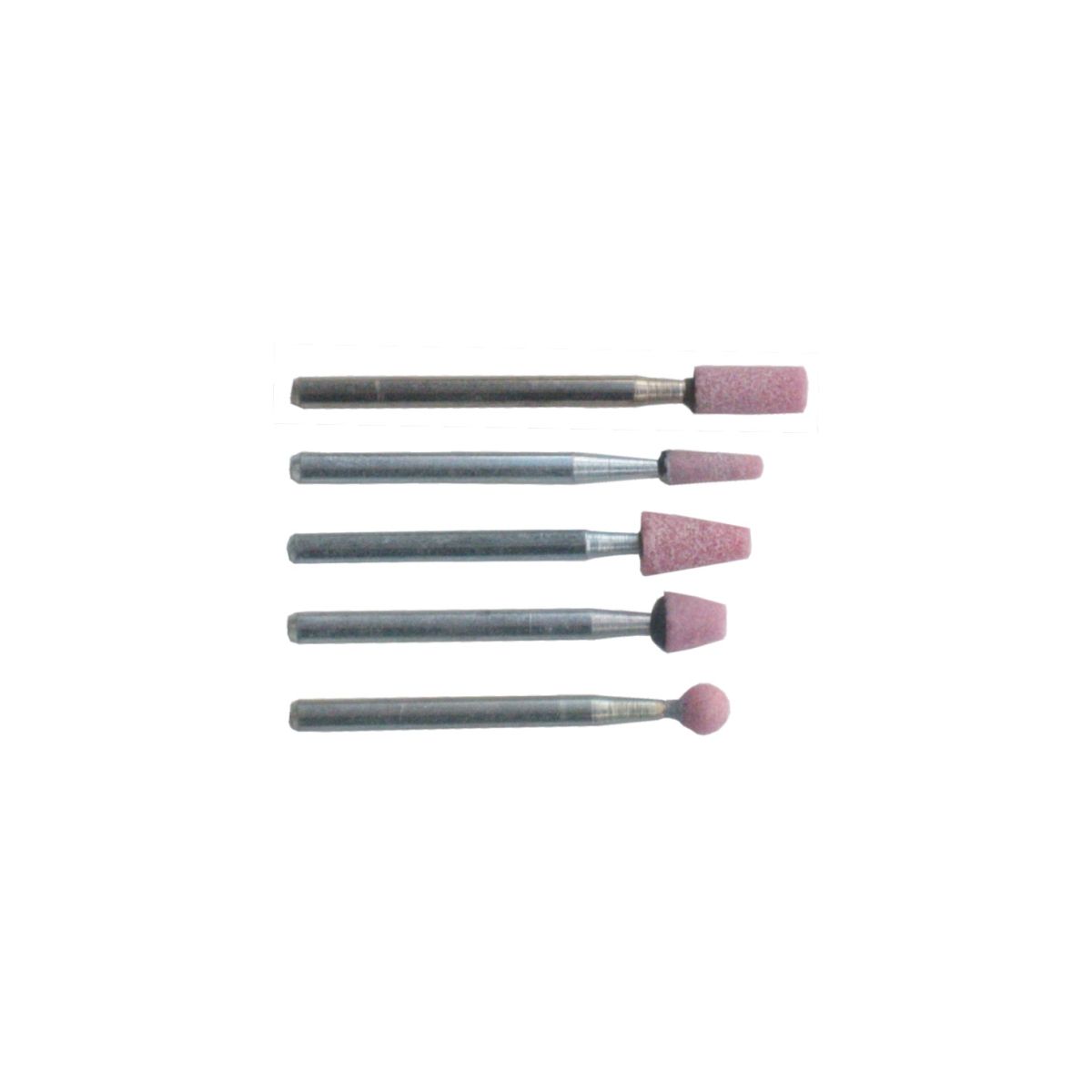

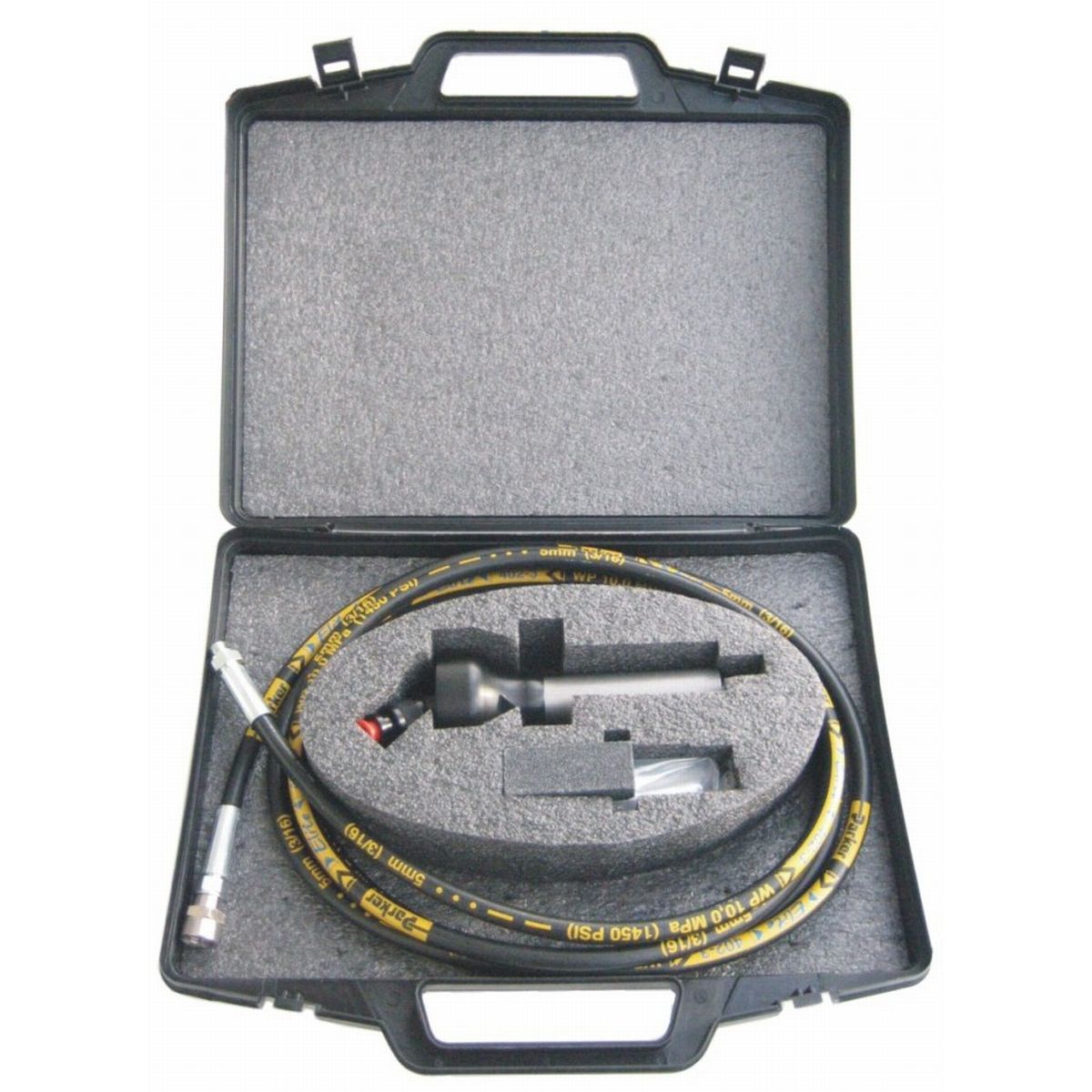

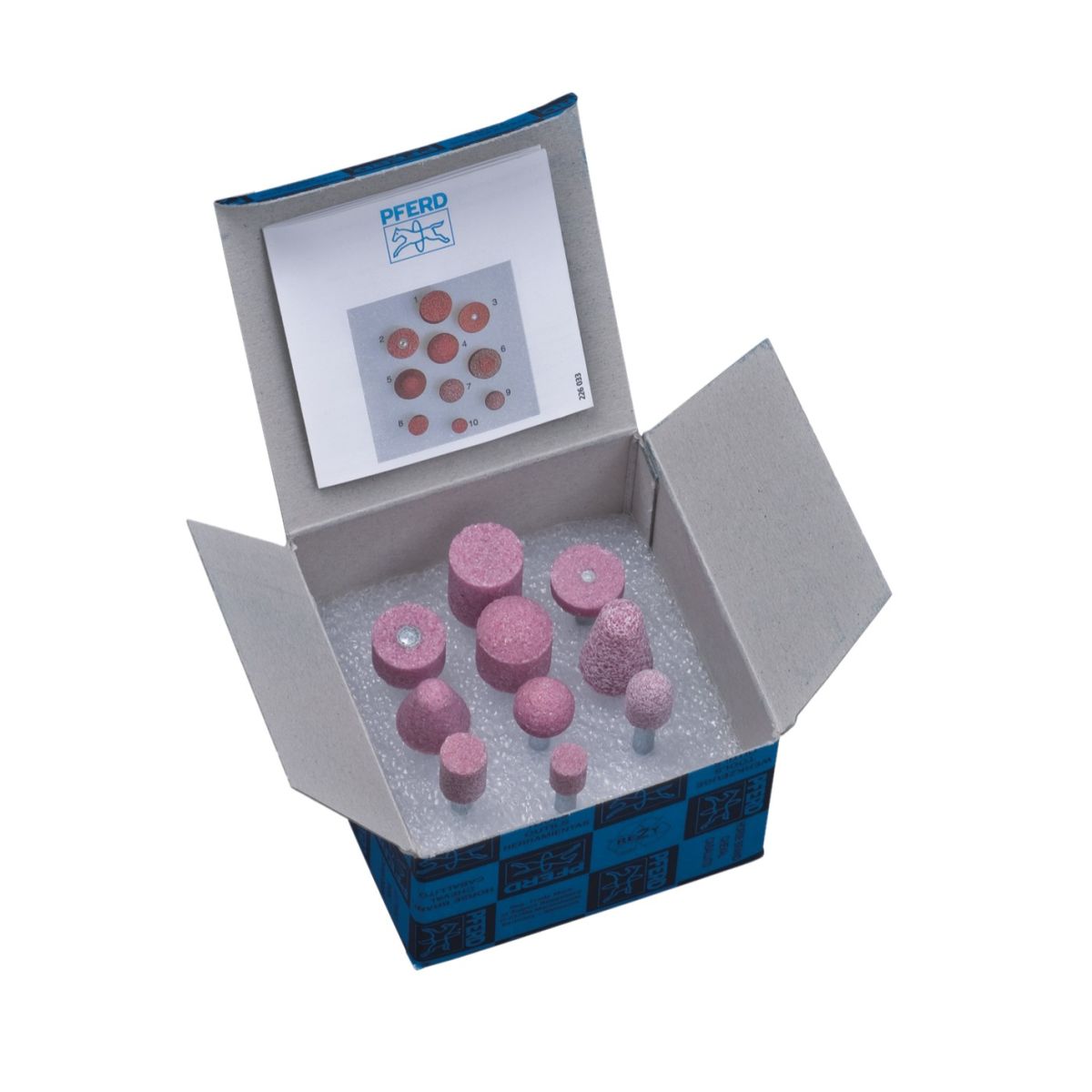

Tool with collet chuck Ø 6 mm, quick-coupling nipple, assembly wrench, 5 grinding pins, whetting stone, air hose and case.
