R14EFC-C-850 Electro-hydraulic pump 850 bar
| Oil delivery: | 0.4 l/min |
|---|---|
| Voltage: | 230 V |
| Power: | 550 W |
| Working pressure: | 850 bar |
| Information: | 200 - 850 bar factory adjustable |
Product number:
74307600
High tool life
R14EFC-C-850 Electro-hydraulic pump 850 bar
Applications
Electro-hydraulic pump R14EFC-C-850 for connecting crimping, cutting and punching heads with 850 bar working pressure; popular for transportation companies.
Working pressure: 850 bar
Use independent of position
The pump has low noise and vibration values for comfortable working environment
Due to the hermetically sealed hydraulic system, the electric hydraulic pump can be transported in any position
Technical specifications
Use independent of position
Electro-hydraulic pump R14EFC-C-850 - reliable in any position
The electro-hydraulic pump is a sturdy and powerful assembly pump with main power supplyThe pump has low noise and vibration values for comfortable working environment
Due to the hermetically sealed hydraulic system, the electric hydraulic pump can be transported in any position
| Oil delivery: | 0.4 l/min |
|---|---|
| Oil fill: | 1.2 (0.8) l |
| Current: | Electric motor 230V |
| Voltage: | 230 V |
| Frequency: | 50 Hz |
| Power: | 550 W |
| Weight: | 15.7 kg |
| Dimensions LxWxH: | 320 x 230 x 395 mm |
| Working pressure: | 850 bar |
| Information: | 200 - 850 bar factory adjustable |

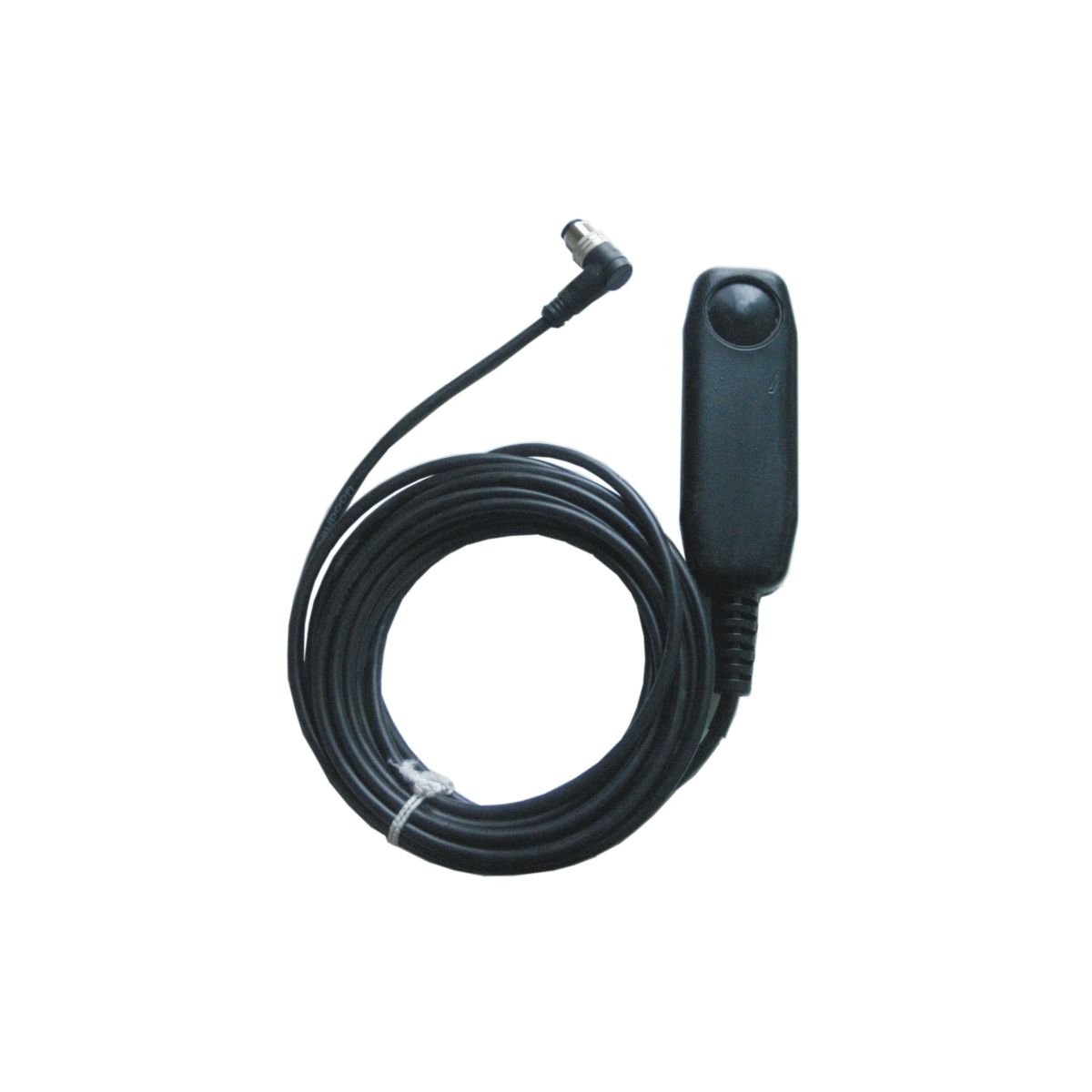

| Start: | Handfernbedienung |
| Hydraulic connection: | Coupling CEJN series 115 |
