R14EFC-C Electro-hydraulic pump 700 bar
| Oil delivery [l/min]: | 0.4 |
|---|---|
| Voltage: | 230 V |
| Power [W]: | 550 |
| Working pressure: | 700 bar |
| Information: | 200 - 850 bar factory adjustable |
Product number:
74307100
High tool life
R14EFC-C Electro-hydraulic pump 700 bar
Applications
The electro-hydraulic pump R14EFC-C is an electric hydraulic pump with main power supply. It is intended for connection with crimping, cutting and punching heads; for energy supply and utility companies, transportation companies, power stations and their service providers as well as in industrial cable assembly.
Working pressure: 700 bar
Use independent of position
The pump has low noise and vibration values for comfortable working environment.
Due to the hermetically sealed hydraulic system, the pump can be transported in any position.
Technical specifications
Use independent of position
Electro-hydraulic pump R14EFC-C - reliable in any position
The electro-hydraulic pump R14EFC-C is a sturdy and powerful assembly pump with main power supply.The pump has low noise and vibration values for comfortable working environment.
Due to the hermetically sealed hydraulic system, the pump can be transported in any position.
| Oil delivery [l/min]: | 0.4 |
|---|---|
| Oil fill: | 1.2 (0.8) l |
| Current: | Electric motor 230V |
| Voltage: | 230 V |
| Frequency: | 50 Hz |
| Power [W]: | 550 |
| Weight [kg]: | 15.7 |
| Dimensions L x W x H: | 320 x 230 x 395 mm |
| Working pressure: | 700 bar |
| Information: | 200 - 850 bar factory adjustable |

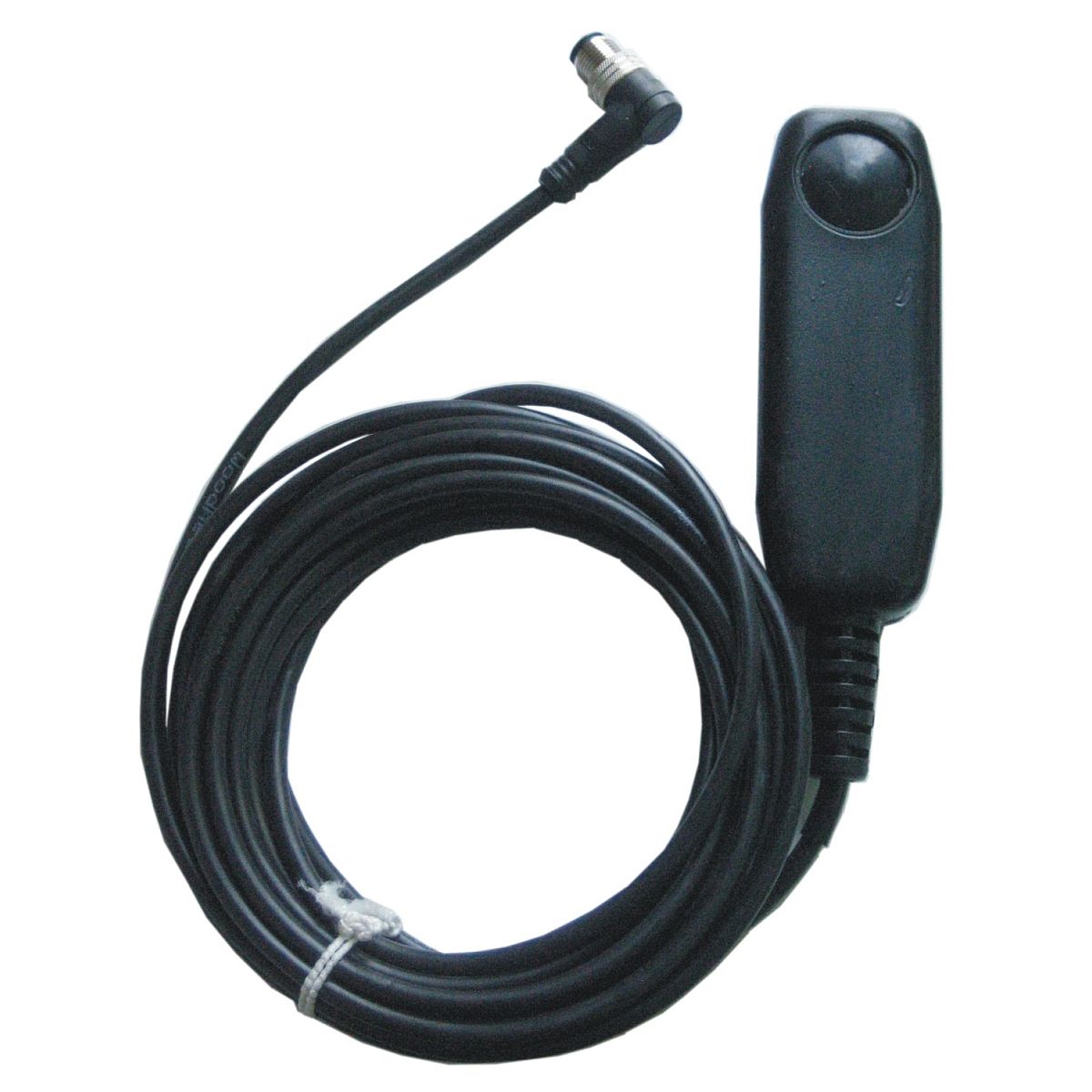

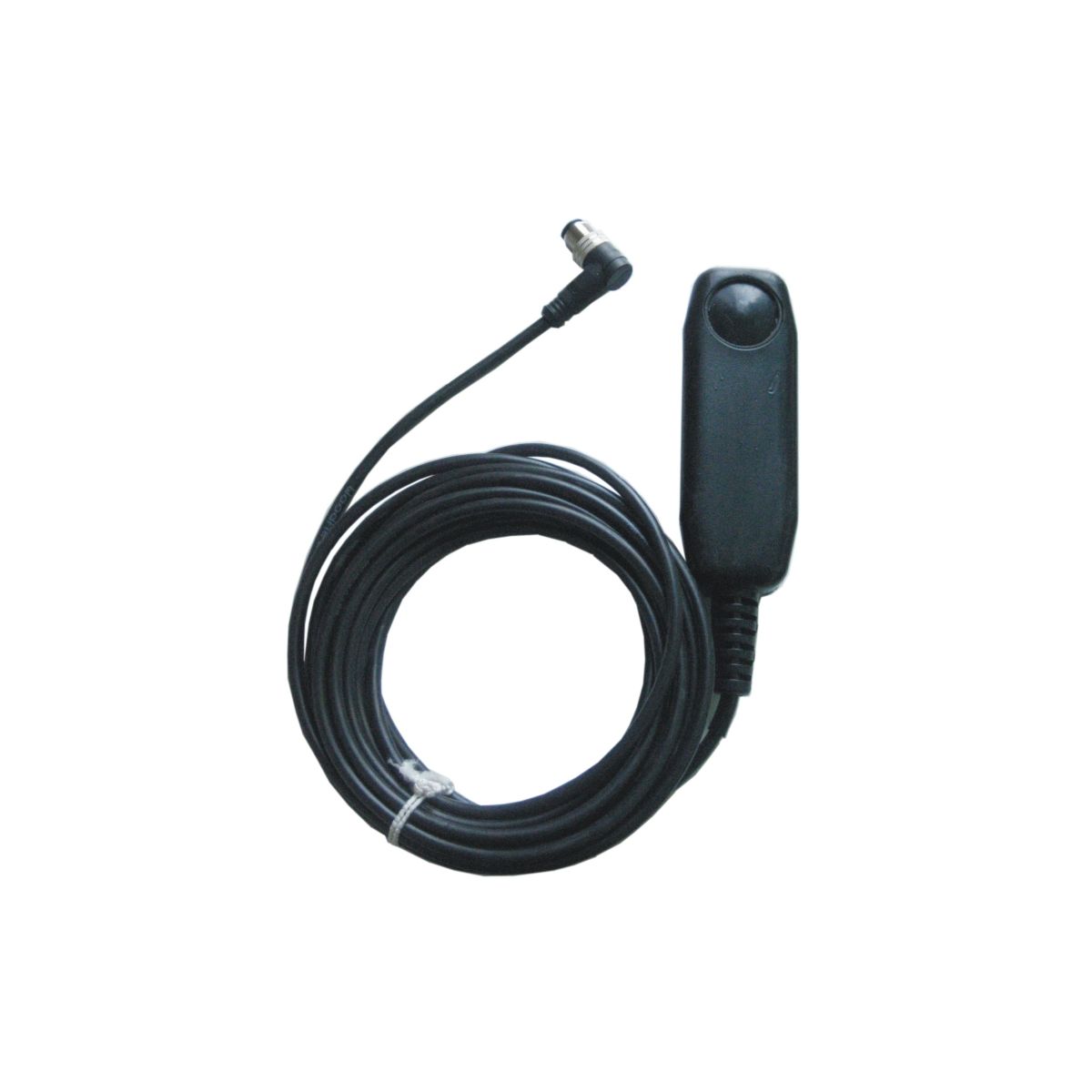

| Start: | Handfernbedienung |
| Hydraulic connection: | Coupling CEJN series 115 |
