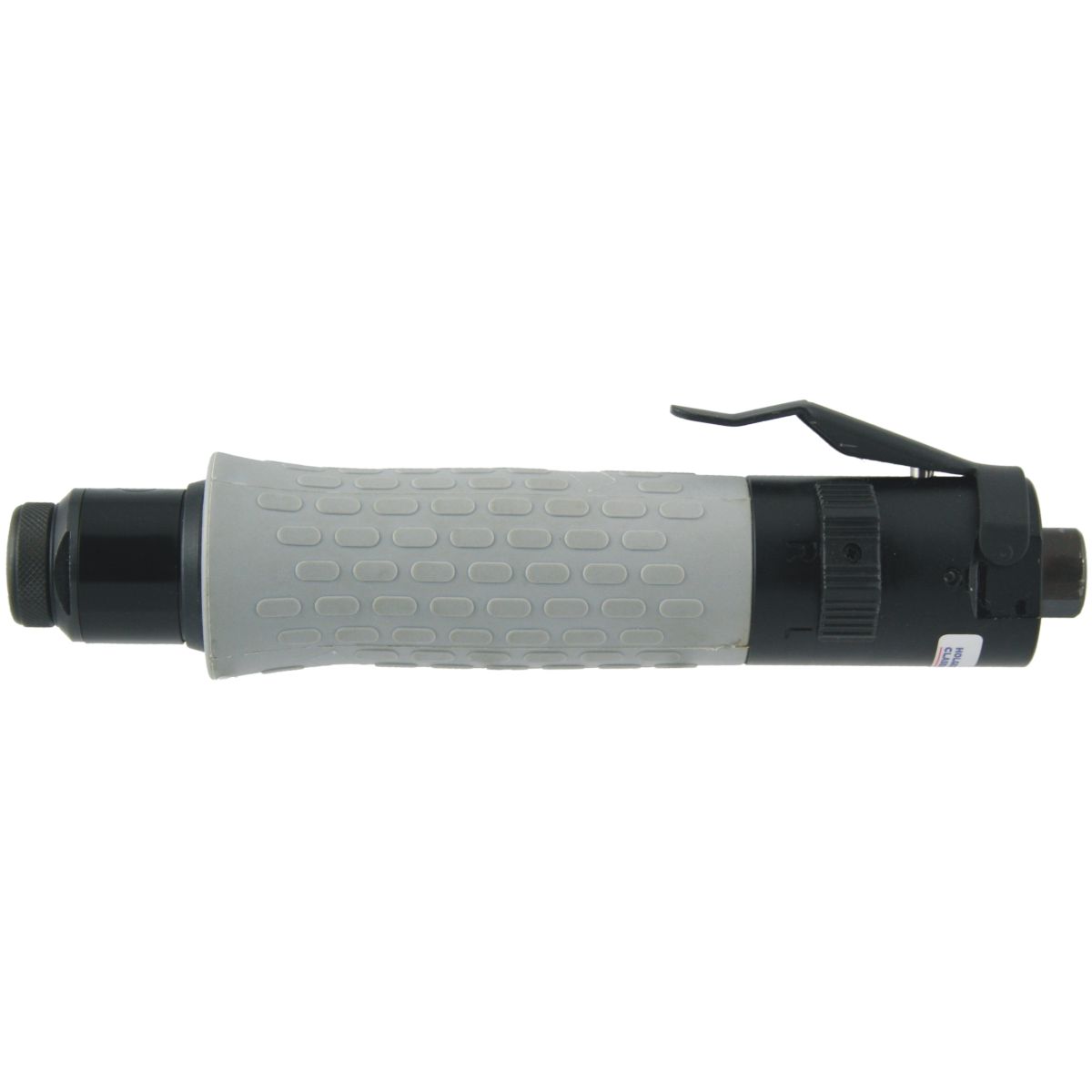

SD30/10 PR Screw driver
| Torque range: | 1.5 - 10.0 Nm |
|---|---|
| Power [W]: | 300 |
| Clutch: | Slip clutch |
| Start: | Taster |
| Construction form: | Pistol |
| Current: | Pneumatic |
Product number:
21250300
Ölfreier Betrieb möglich
SD30/10 PR Screw driver
Applications
The air screwdriver with slip clutch SD30/10PR is an assembly tool for universal applications, especially for soft screw-joints and self-tapping screws in wood and plastics. The user can control the final torque. The air powered screw driver has a power of 300 Watt and It is designed for industrial applications.
Torque range with white spring, wire Ø 2.5 mm: 1.5 - 4.5 Nm
Torque range with red spring, wire Ø 3.5 mm: 3.5 - 10.0 Nm
Quick-change chuck with easy and safe use
Speed 450 min-1
The screwdriver has a slip clutch. When the torque is reached, the clutch engages and the classic ratcheting can be heard.
Thanks to the speed of 450 min-1 short screwing cycles are guaranteed.
The pistol shape is ideal for applications where pressure is to be applied along the screwing axis.
With 0.98 kg the screwdriver is very light. The direction of rotation can easily be changed by a rotary switch.
The pneumatic screwdriver is started comfortably via the low effort button.
The reaction torque at shut-off is low, which relieves the operator of the burden of frequent screwing cycles.
Above 4 Nm shut-off torque we recommend a support, which relieves the operator of frequent screwing cycles.
Oil-free operation in sensitive areas is possible.
Technical specifications
Torque range with red spring, wire Ø 3.5 mm: 3.5 - 10.0 Nm
Quick-change chuck with easy and safe use
Speed 450 min-1
SD30/10PR - reliable air screwdriver with slip clutch for industrial use
With the conversion of the clutch spring, the screwdriver has a wide torque range for a variety of applications.The screwdriver has a slip clutch. When the torque is reached, the clutch engages and the classic ratcheting can be heard.
Thanks to the speed of 450 min-1 short screwing cycles are guaranteed.
The pistol shape is ideal for applications where pressure is to be applied along the screwing axis.
With 0.98 kg the screwdriver is very light. The direction of rotation can easily be changed by a rotary switch.
The pneumatic screwdriver is started comfortably via the low effort button.
The reaction torque at shut-off is low, which relieves the operator of the burden of frequent screwing cycles.
Above 4 Nm shut-off torque we recommend a support, which relieves the operator of frequent screwing cycles.
Oil-free operation in sensitive areas is possible.
| Torque range: | 1.5 - 10.0 Nm |
|---|---|
| Torque range spring: | assembled 1.5 - 4.5 Nm / optional 3.5 - 10.0 Nm |
| Speed: | 450 / min |
| Power [W]: | 300 |
| Clutch: | Slip clutch |
| Start: | Taster |
| Construction form: | Pistol |
| Direction of rotation: | Reversible |
| Housing Ø: | 36 mm |
| Length [mm]: | 224 |
| Height: | 154 mm |
| Weight [kg]: | 0.98 |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 9 l/s |
| Sound pressure level: | 74 dB(A) |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Chuck: | Quick-changing chuck female hex. 1/4" (6.35 mm) |
| Inlet air connection: | G 1/4" |
