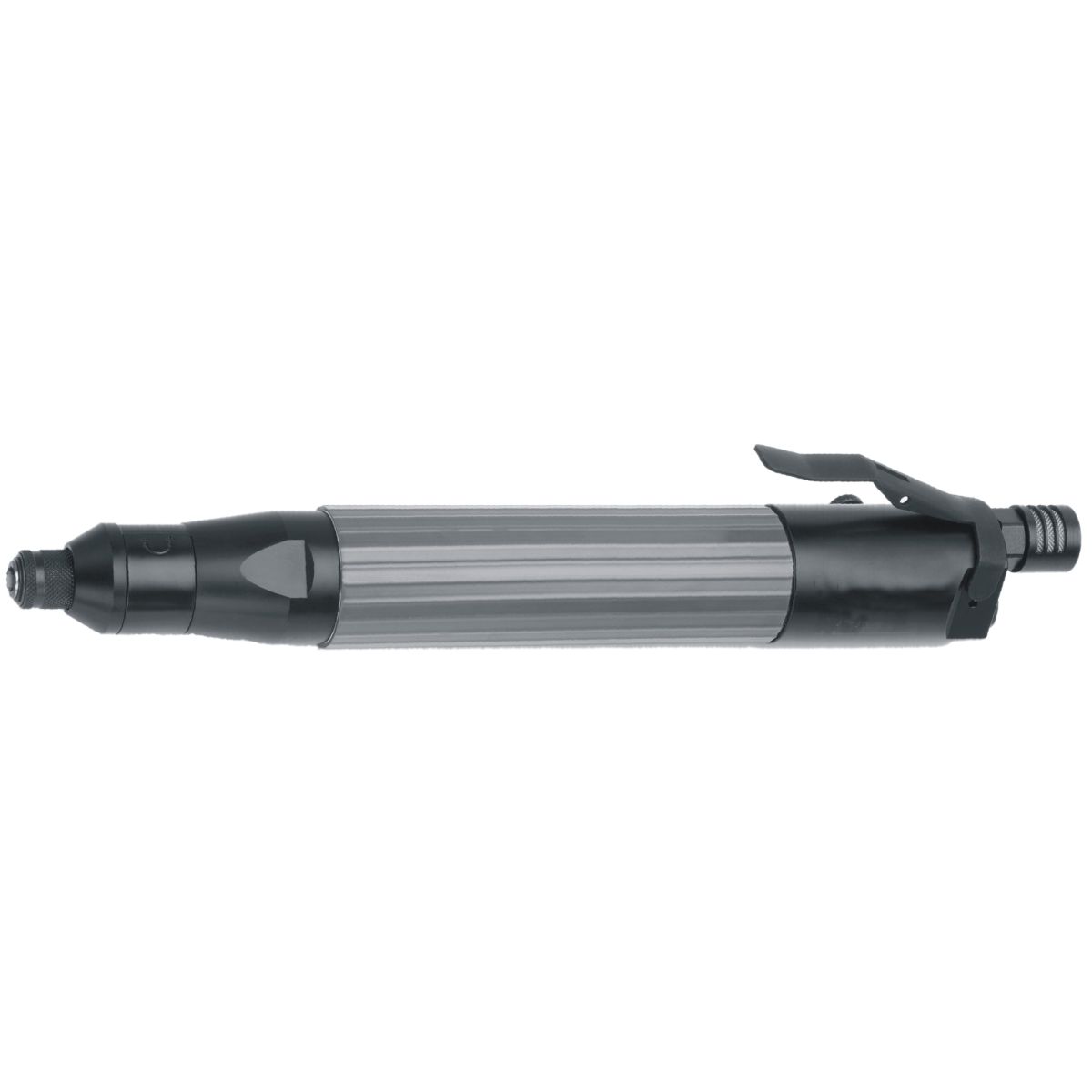

SD401/18 A-R Screw driver
| Torque range: | 7.0 - 18.0 Nm |
|---|---|
| Power: | 400 W |
| Clutch: | Shut-off clutch |
| Start: | Push-to-start |
| Construction form: | Straight |
| Current: | Pneumatic |
Product number:
21183200
Ölfreier Betrieb möglich
SD401/18 A-R Screw driver
Applications
The straight Air nut runner SD401/18A-R with shut-off clutch and push-to-start is ideal for the assembly of components and/or workpieces in single-place or series production. The air nut runner is convincing due to its high repeatability, shut-off precision, low energy consumption, low reaction torque and low noise level.
Torque range with grey spring, wire Ø 4.0 mm: 7 - 18 Nm
Quick change chuck for easy bit change.
± 5% switch-off accuracy and high repeatability
Speed 800 min-1
Thanks to the speed of 800 min-1, short screwing cycles are guaranteed. Due to the rod shape, the pneumatic screwdriver is comfortable and safe to handle and ideal for vertically designed screwdriving jobs. An optional second handle gives you more control over the tool. For high torques we recommend the installation in a tool holder. At 1.5 kg, the screwdriver for this performance class is light. The direction of rotation simply cannot be changed with this type. The pneumatic screwdriver is started comfortably by axial pressure in the working direction. The silencer, which is rotatable, reduces the noise level. Oil-free operation in sensitive areas is possible.
Technical specifications
Quick change chuck for easy bit change.
± 5% switch-off accuracy and high repeatability
Speed 800 min-1
SD 401/18 A-R - powerful, sturdy straight air nut runner with shut-off clutch and push-to-start
The screwdriver has a wide torque range for various applications. The torque is adjusted via a clutch key. The air supply to the motor switches off reliably and repeatable after reaching the set nominal torque.Thanks to the speed of 800 min-1, short screwing cycles are guaranteed. Due to the rod shape, the pneumatic screwdriver is comfortable and safe to handle and ideal for vertically designed screwdriving jobs. An optional second handle gives you more control over the tool. For high torques we recommend the installation in a tool holder. At 1.5 kg, the screwdriver for this performance class is light. The direction of rotation simply cannot be changed with this type. The pneumatic screwdriver is started comfortably by axial pressure in the working direction. The silencer, which is rotatable, reduces the noise level. Oil-free operation in sensitive areas is possible.
| Torque range: | 7.0 - 18.0 Nm |
|---|---|
| Speed: | 800 min-1 |
| Power: | 400 W |
| Clutch: | Shut-off clutch |
| Start: | Push-to-start |
| Construction form: | Straight |
| Direction of rotation: | Right |
| Housing Ø: | 46 mm |
| Length: | 315 mm |
| Weight: | 1.50 kg |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 10 l/s |
| Sound pressure level: | 80 dB(A) |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Chuck: | Quick-changing chuck female hex. 1/4" (6.35 mm) |
| Inlet air connection: | G 1/4" |
| Vibration: | < 2.5 m/s² |
