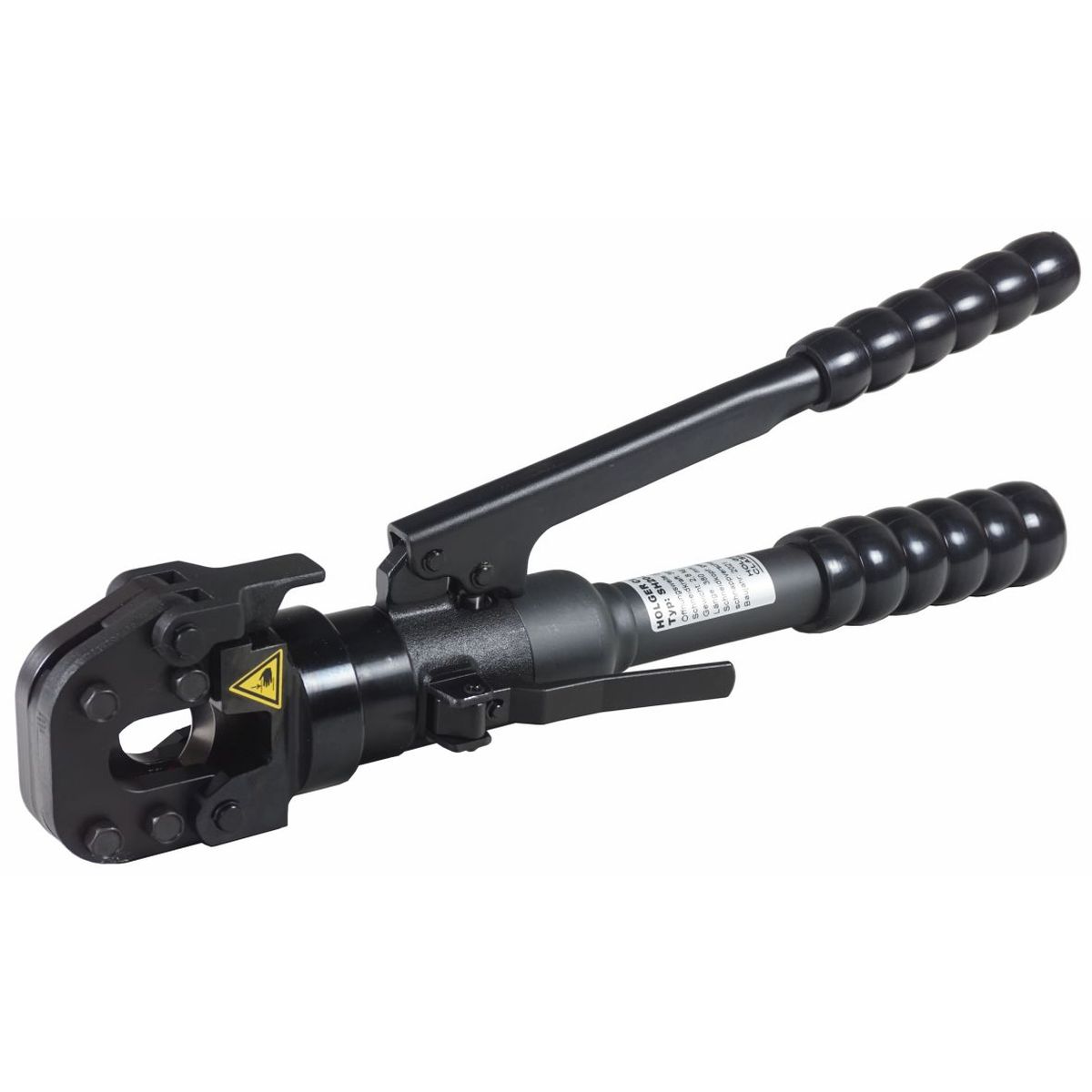

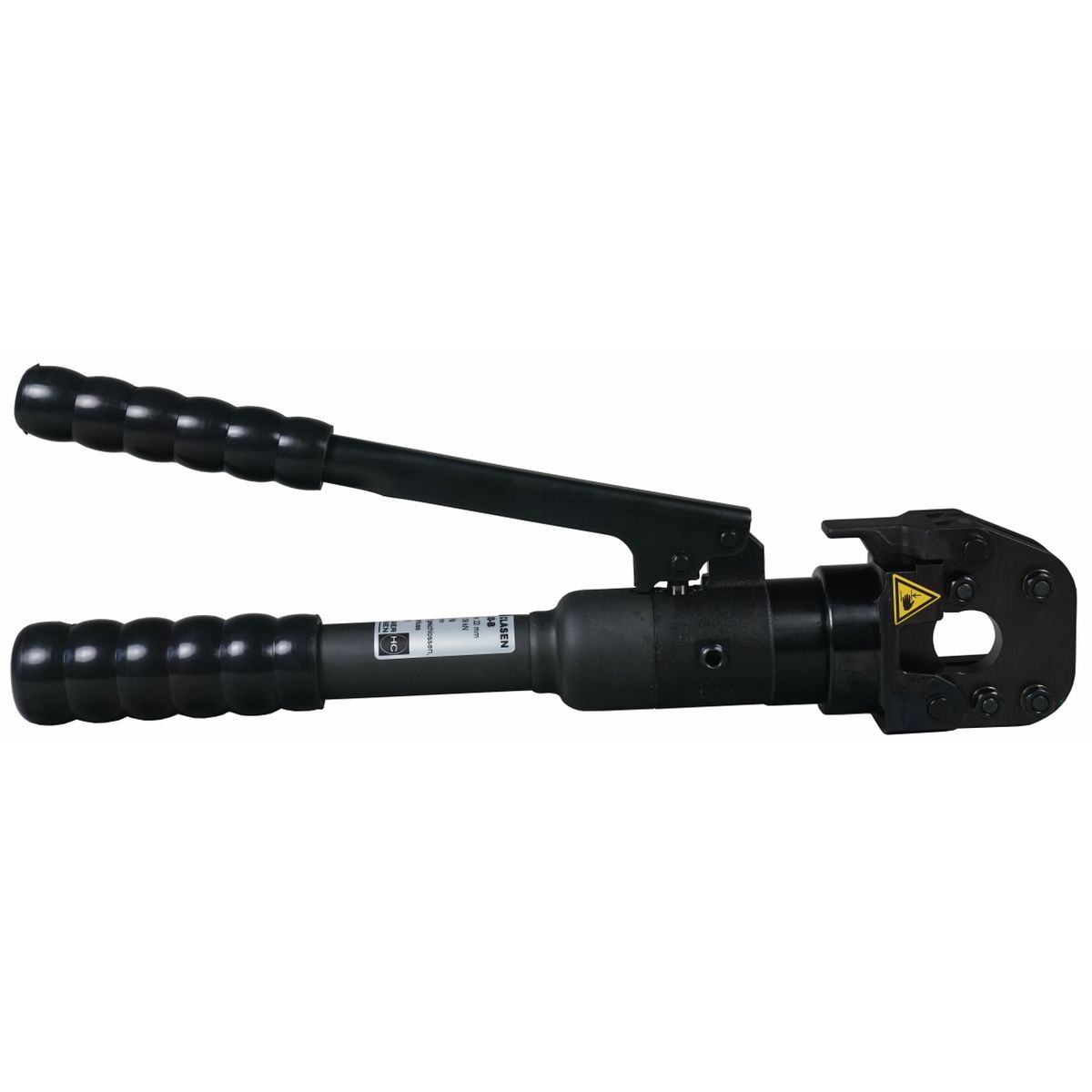

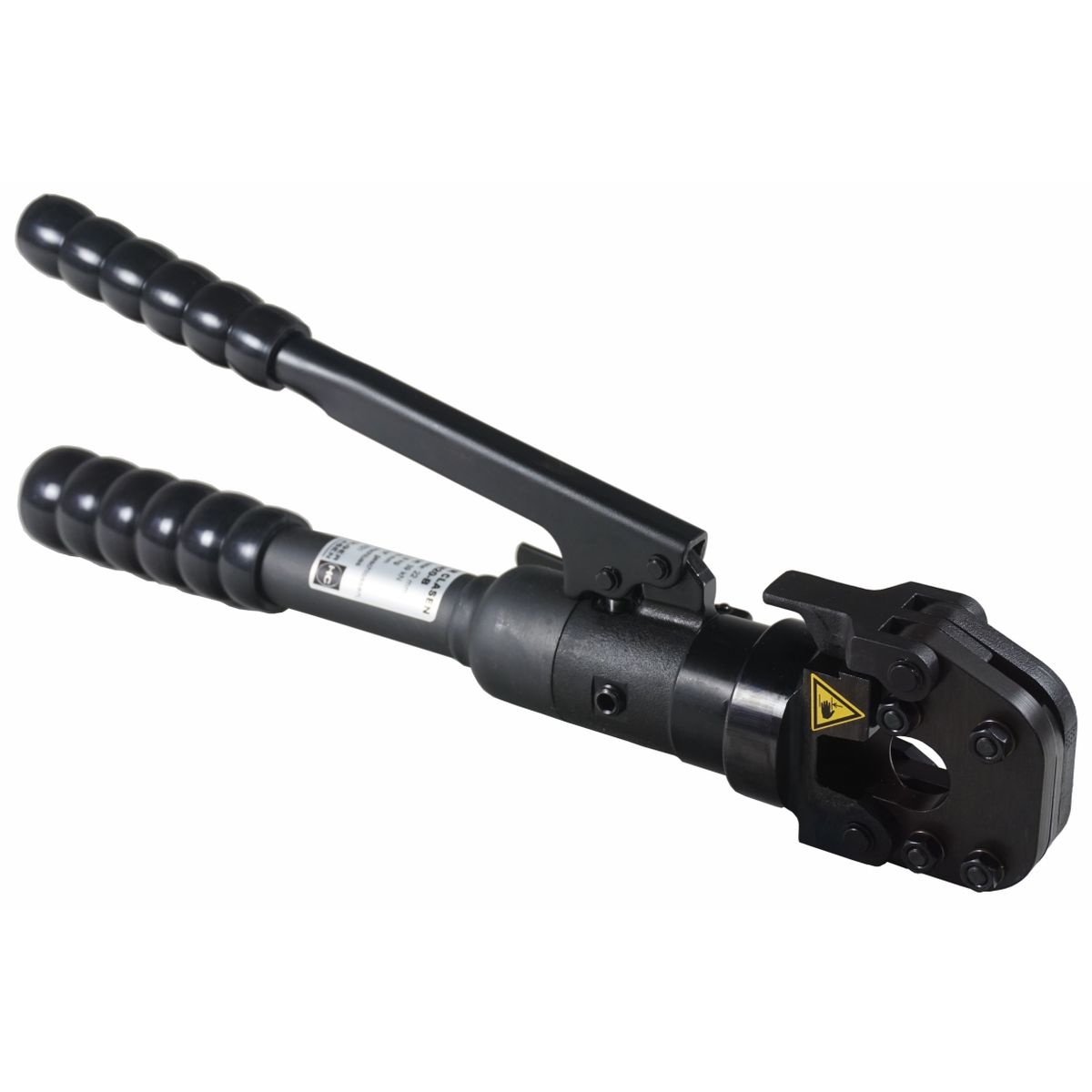

SH20-B Hand-hydraulic cutting tool
| Cutting force: | 39 kN |
|---|---|
| Opening width: | 22 mm |
| Suitable for: | overhead lines |
Product number:
72513000
Rotating Head
Narrow design
SH20-B Hand-hydraulic cutting tool
Applications
The wire rope cutter SH20-B is a hand-hydraulic tool for cutting through solid material, ACSR, overhead lines, especially steel, up to a diameter of 22 mm. Its areas of application are power supply companies, public utilities and their service providers, power stations, transport companies and in the field of passenger and freight elevators.
Opening width: 22 mm
Cutting force: 39 kN
Thanks to optimized transmission of power (guillotine principle) the handheld hydraulic cutting tool cuts even hard material (e.g. ACSR).
Simple, fast operation due to the snap fit.
The hydraulic cutting tool offers an excellent power to weight ratio.
Technical specifications
Cutting force: 39 kN
Hydraulic Wire rope cutter SH20-B - powerful entry-level tool for hard materials
Secure cutting due to closed, pivoting cutting head.Thanks to optimized transmission of power (guillotine principle) the handheld hydraulic cutting tool cuts even hard material (e.g. ACSR).
Simple, fast operation due to the snap fit.
The hydraulic cutting tool offers an excellent power to weight ratio.
| Cutting force: | 39 kN |
|---|---|
| Opening width: | 22 mm |
| Suitable for: | overhead lines |
| Weight: | 2.8 kg |
| Length [mm]: | 380 |
| Head: | closed |
| Lock type: | Snap fit |
