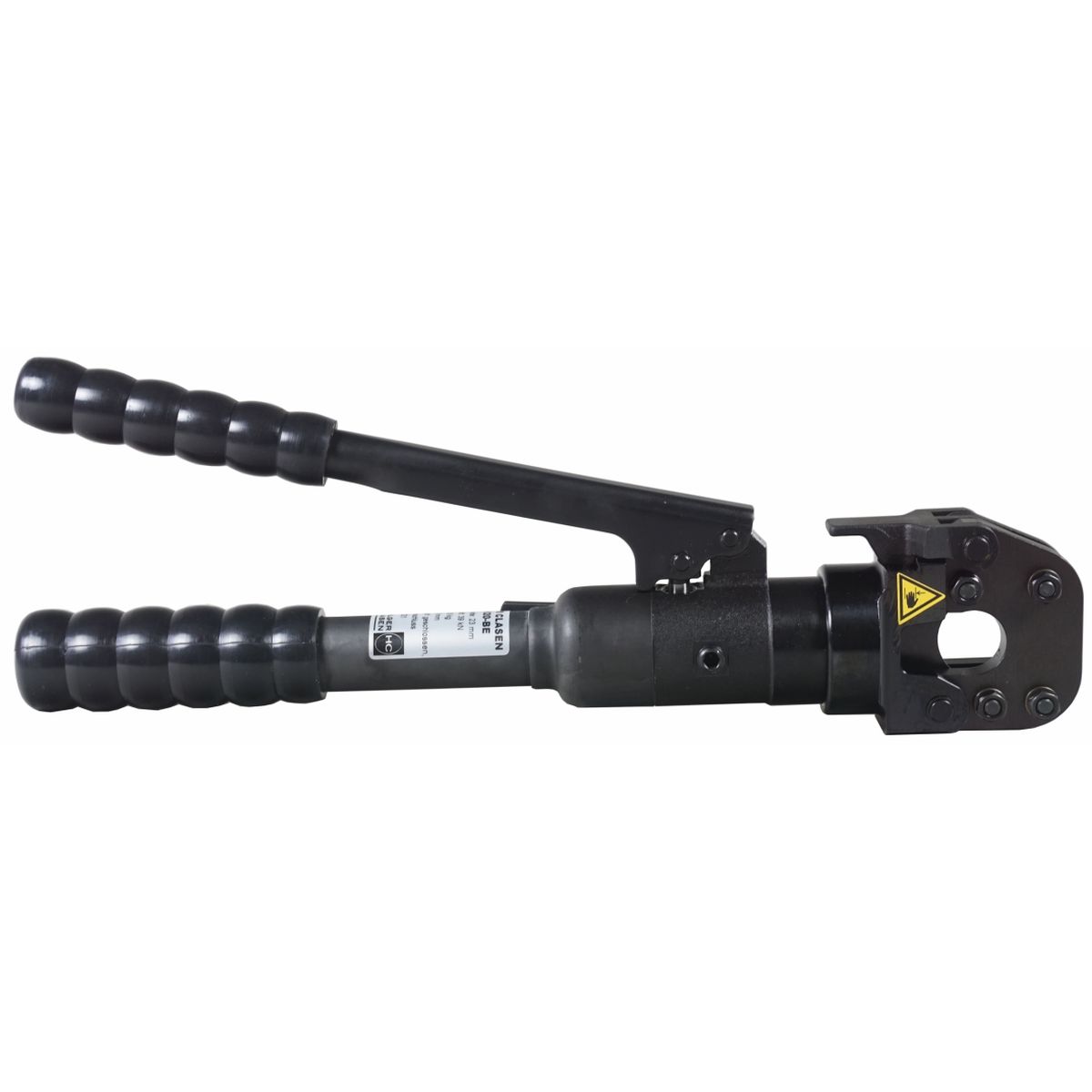

SH20-BE Hand-hydraulic cutting tool
| Cutting force: | 39 kN |
|---|---|
| Opening width: | 23 mm |
| Suitable for: | overhead lines |
Product number:
72515000
Rotating Head
Narrow design
SH20-BE Hand-hydraulic cutting tool
Applications
The SH20-BE is a handheld hydraulic wire rope cutter for cutting through solid material, ACSR, overhead lines, especially steel, up to a diameter of 23 mm. Its areas of application are power supply companies, public utilities and their service providers, power stations, transport companies and in the field of passenger and freight elevators.
Opening width: 23 mm
Cutting force: 39 kN
Thanks to optimized transmission of power (guillotine principle) the wire rope cutter is useable for cutting even hard material, e.g. ACSR or ropes in Passenger and freight elevators.
Simple, fast operation due to the snap fit.
The hydraulic cutting tool offers an excellent power to weight ratio.
Technical specifications
Cutting force: 39 kN
Wire rope cutter SH20-BE - powerful entry-level tool for hard materials
Secure cutting due to closed, pivoting cutting head.Thanks to optimized transmission of power (guillotine principle) the wire rope cutter is useable for cutting even hard material, e.g. ACSR or ropes in Passenger and freight elevators.
Simple, fast operation due to the snap fit.
The hydraulic cutting tool offers an excellent power to weight ratio.
| Cutting force: | 39 kN |
|---|---|
| Opening width: | 23 mm |
| Suitable for: | overhead lines |
| Weight: | 2.8 kg |
| Length [mm]: | 380 |
| Lock type: | Snap fit |
| Head: | closed |
