SP20/2A-S Air Nutrunner
| Torque range: | 0.6 - 2.5 Nm |
|---|---|
| Power: | 200 W |
| Clutch: | Shut-off clutch |
| Start: | by axial pressure |
| Construction form: | Straight |
| Current: | Pneumatic |
Product number:
20176200
SP20/2A-S Air Nutrunner
Applications
This air nutrunner motor is intended for installation in bolting units and assembly systems with one or more tightening spindles and its design makes it ideal for use in industrial automation. It can also be installed in single station solutions with multi-spindle units. Possible applications would be the use in automatic assembly lines, rotary indexing machines, multiple screwdriving units and screw slides as well as the integration in robot arms.
Air nutrunner SP20/2A-S with shut-off clutch, clockwise rotation
Torque range: 0.8 - 2.5 Nm / 0.6 - 1.2 NmSpeed: 2,700 min-1
Power: 200 W
Clockwise running direction to screw in.
Push start via axial pressure - as soon as 2 to 3 kg of pressure is applied, the motor switches on.
This start system is preferably used in feed screw units (hybrid assembly systems).
Air nutrunner motors with shut-off clutch allow automatic, immediate shut-off when torque is reached.
They have a high repeatability and are therefore the first choice when assembling parts made of high-quality materials, e.g. in the automotive sector.
The control via a torque transducer is possible, it checks the proper release of the clutch, reads the torque values applied and saves this data. You thus have control over the bolting cycles and can reduce failures.
There is no risk of overheating with these rugged, high-performance air nutrunner motors.
Even with continuous operation, frequent starts/stops or, if necessary, reversal of the direction of rotation (UD types), they provide constant performance over the long term, even under the most severe operating conditions.
By using high-quality components and materials, the tightening spindles have a long service life and low maintenance costs.
The installed thrust bearings withstand the demands of automated production cycles.
The low space requirement and low weight also allow installation in multiple screw spindle units.
This SP20/...type is equipped with a quick-change chuck SWF and effectively protects against accessories falling out and allows easy replacement.
The air nutrunner motor has the ideal design for mounting in your machines.
Connection to an oil separator to reduce oil mist emissions is possible.

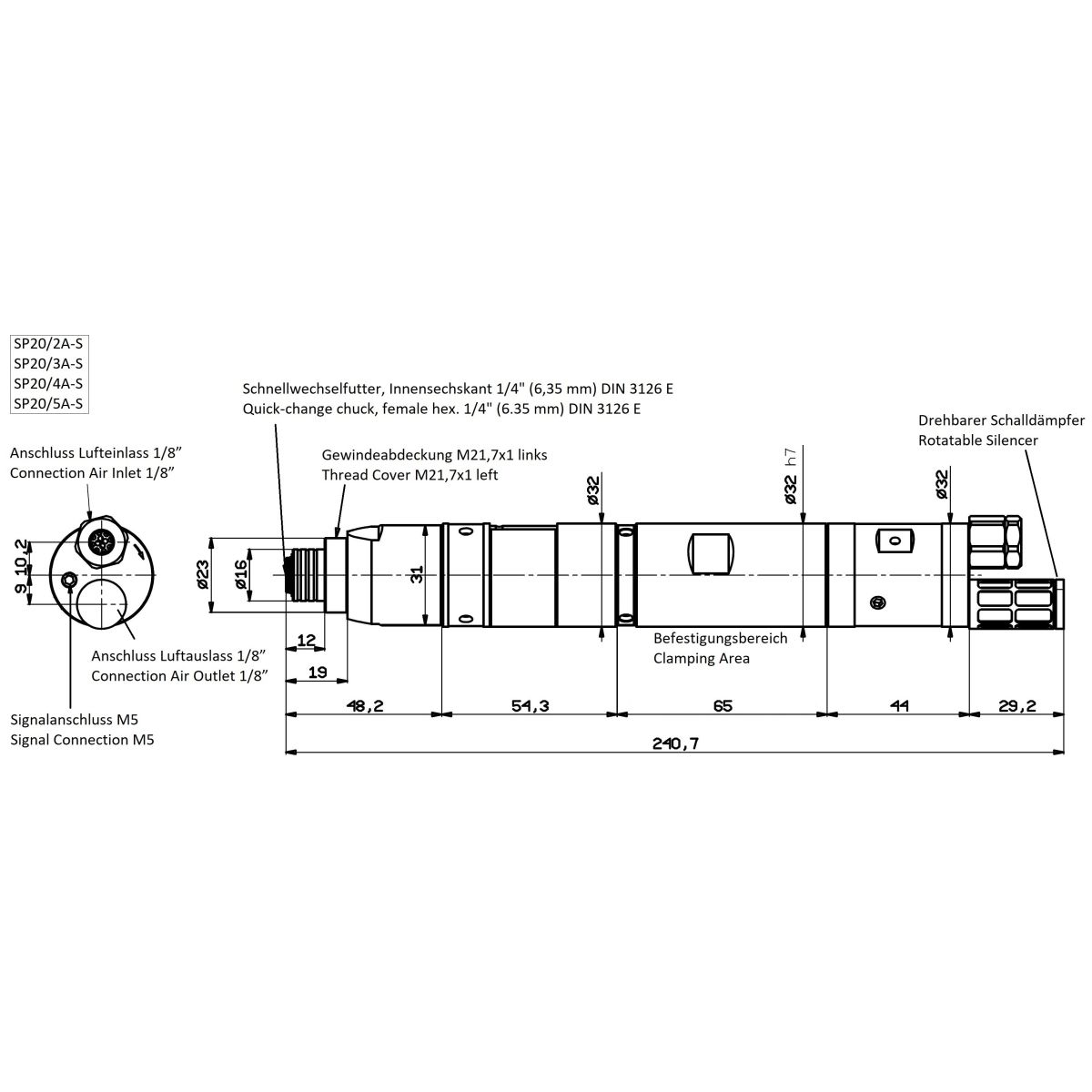

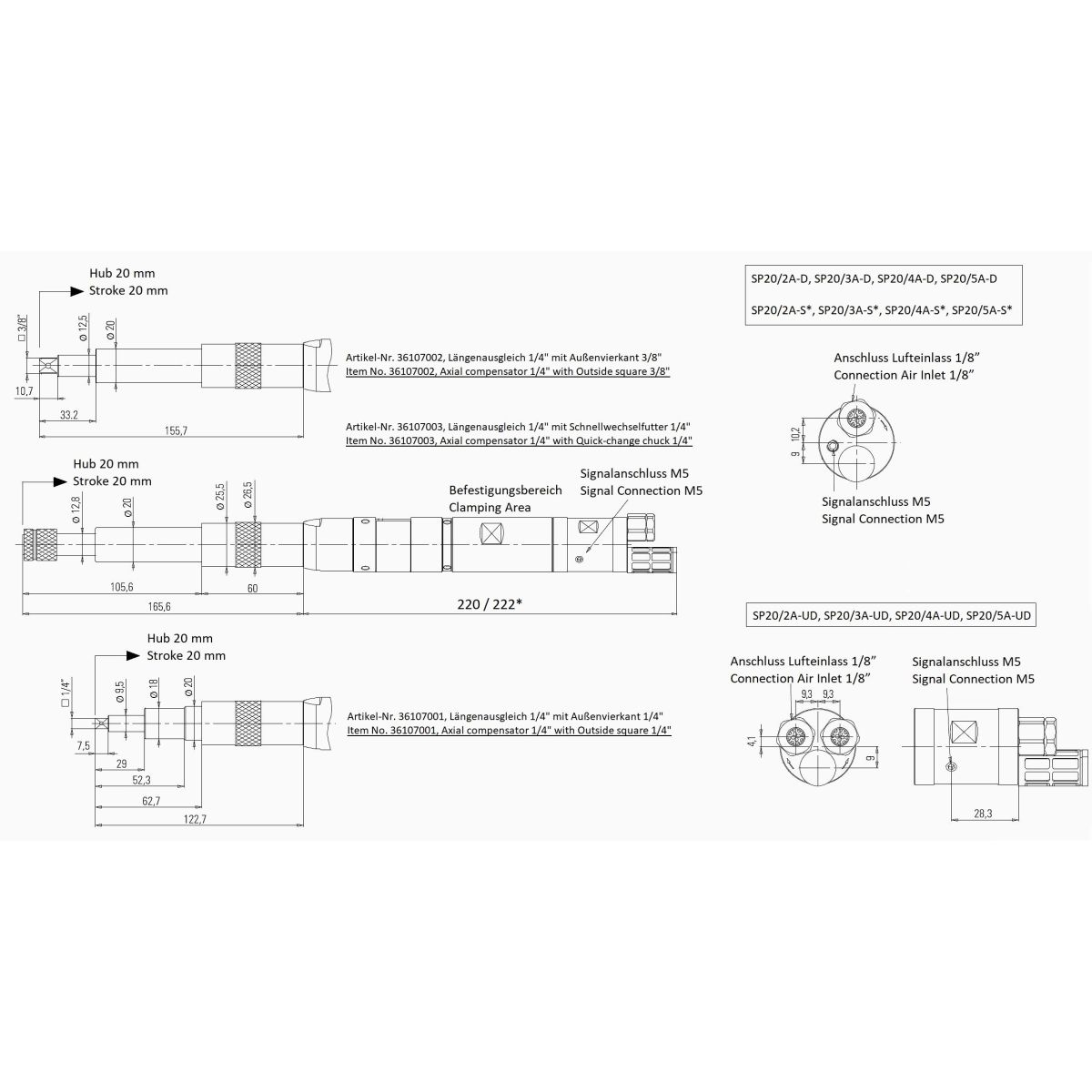

In the accessories you will find suitable length compensators to compensate for any height differences of the screws. They reduce the axial pressure on the mechanical part of the motor, protect the internal components and increase the service life.
| Torque range: | 0.6 - 2.5 Nm |
|---|---|
| Speed: | 2700 min-1 |
| Power: | 200 W |
| Clutch: | Shut-off clutch |
| Start: | by axial pressure |
| Construction form: | Straight |
| Direction of rotation: | clockwise |
| Housing Ø: | 32 h7 mm |
| Length: | 241 mm |
| Weight: | 0.75 kg |
| Signal connection: | M5 |
| Recommended hose Ø: | 6 mm |
| Air consumption: | 5.5 l/s |
| Sound pressure level: | 75 dB(A) |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Torque range spring: | assembled / optional0.8 - 2.5 / 0.6 - 1.2 Nm |
| Chuck: | Quick-changing chuck female hex. 1/4" (6.35 mm) |
| Inlet air connection: | G 1/8" |
