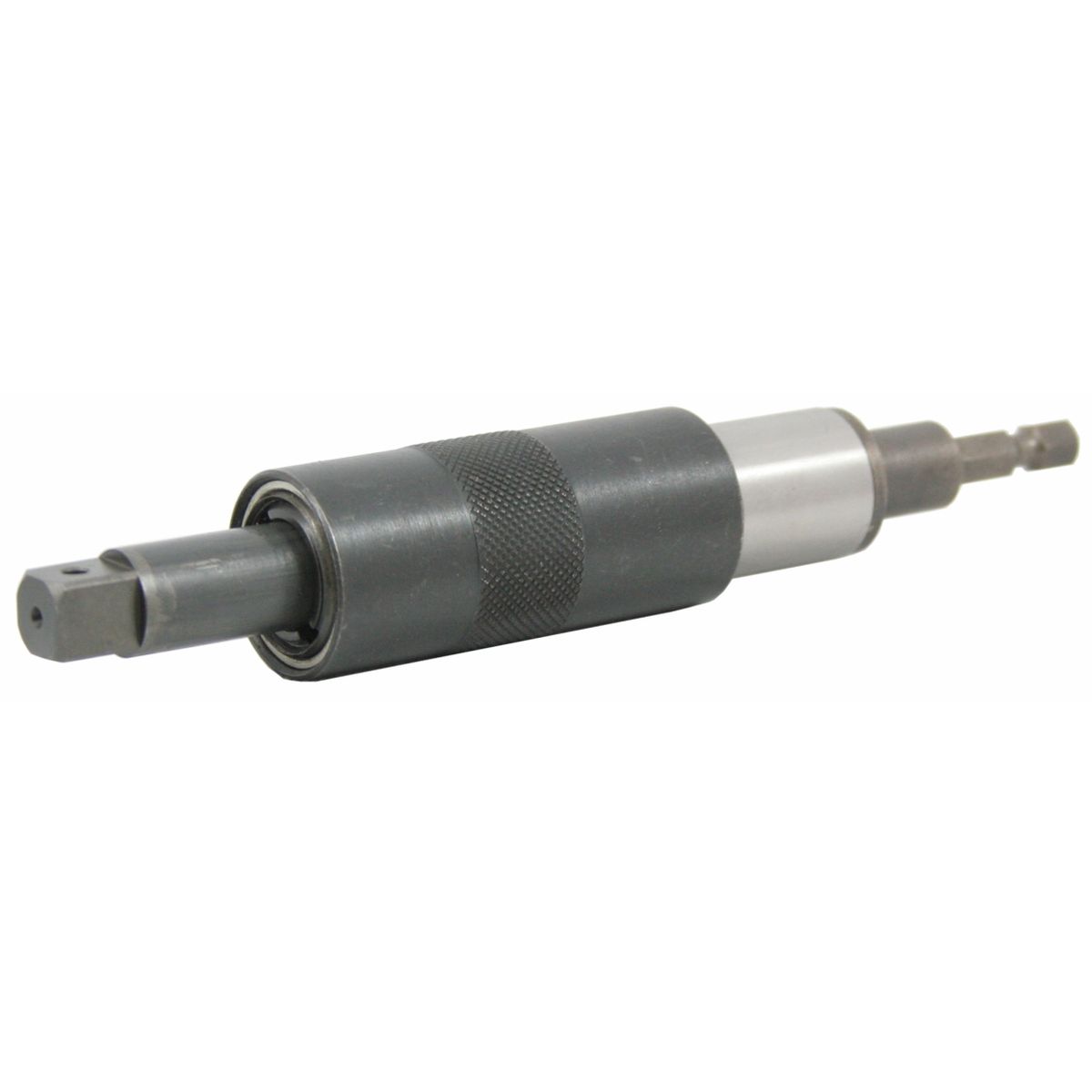

SR-07-01 Axial compensator
| Stroke: | 20 mm |
|---|
Product number:
36107001
SR-07-01 Axial compensator
Applications
Length compensators make it easier to
apply the screws and reduce the axial stress on
the mechanical components of the nutrunner motor.
Chuck: Male square 1/4"
Drive: Male hexagonal 1/4" (DIN 3126 - E6.3)
Stroke: 20 mm
If several screws have to be screwed in at the same time, the length compensation equalizes the height differences of the individual screws at the beginning of the screwing process. A built-in guide sleeve ensures that the length compensation is always perfectly aligned.
The spring tension of the length compensation is approx. 3.5 kg in the end position.
Before using the length compensation for nutrunners with self-start, please consult with HOLGER CLASEN customer service.

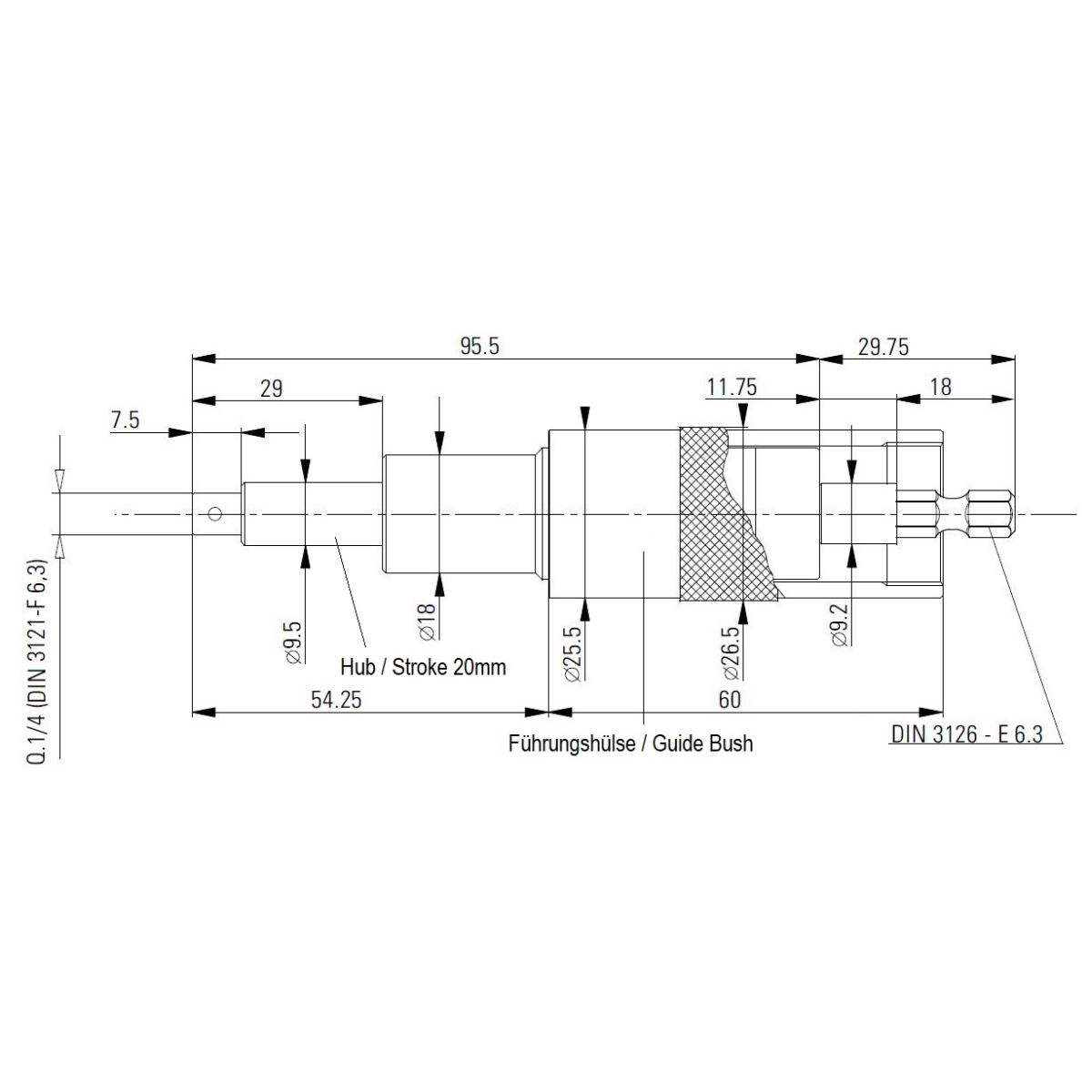

Technical specifications
Drive: Male hexagonal 1/4" (DIN 3126 - E6.3)
Stroke: 20 mm
If several screws have to be screwed in at the same time, the length compensation equalizes the height differences of the individual screws at the beginning of the screwing process. A built-in guide sleeve ensures that the length compensation is always perfectly aligned.
The spring tension of the length compensation is approx. 3.5 kg in the end position.
Before using the length compensation for nutrunners with self-start, please consult with HOLGER CLASEN customer service.
| Stroke: | 20 mm |
|---|---|
| Information: | Spring tensioning force in end position approx. 3.5 kg |
| Chuck: | External hexagon 1/4" DIN 3126 - E6.3Outside square 1/4" DIN 3121 - F6.3 |
