SW40/35 FA Flat angle head screw driver % DEAL %
€3,100.00*
| Torque range: | 12.0 - 33.0 Nm |
|---|---|
| Power: | 400 W |
| Clutch: | Shut-off clutch |
| Start: | Valve lever |
| Construction form: | Straight, Flat angle head |
| Current: | Pneumatic |
Product number:
22178300
In stock:
1 ( * while supplies last )
Ölfreier Betrieb möglich

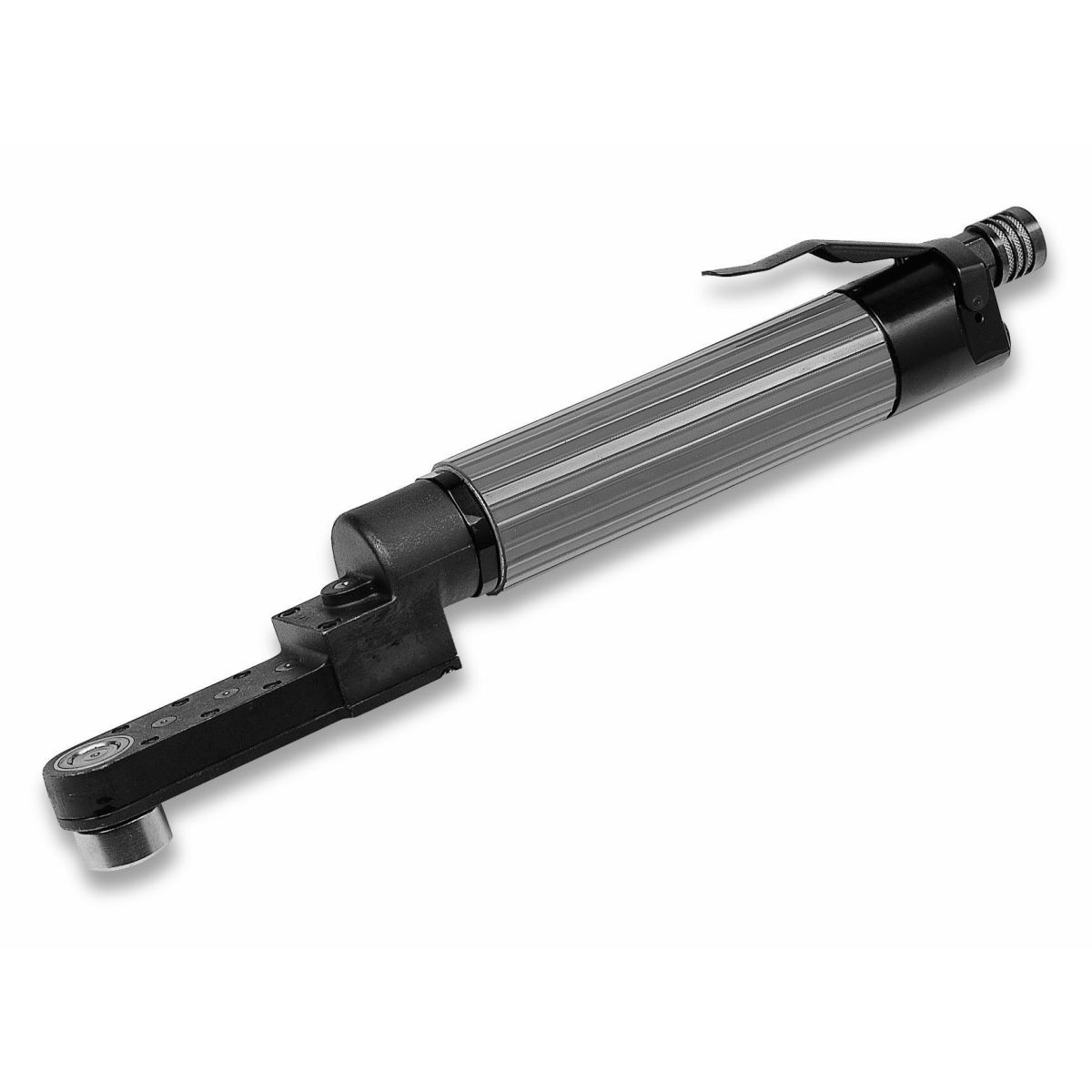

SW40/35 FA Flat angle head screw driver % DEAL %
Applications
The pneumatic flat head screwdriver SW40/35FA with shut-off clutch is ideal for screwing in narrow and difficult to access places and/or workpieces in single-place or series production. The flat head screwdriver convinces by a long tool life, repeatability, shut-off precision and performance.
For screw connections in narrow and difficult to access places
Torque range: 12 - 33 Nm
Chuck: SW14
± 5% switch-off accuracy and high repeatability
Speed: 250 min-1
The torque can be easily adjusted with a clutch key.
The tool switches off the air supply reliably and with repeatable accuracy after reaching the nominal torque.
Thanks to the speed of 250 min-1 short screwing cycles are guaranteed.

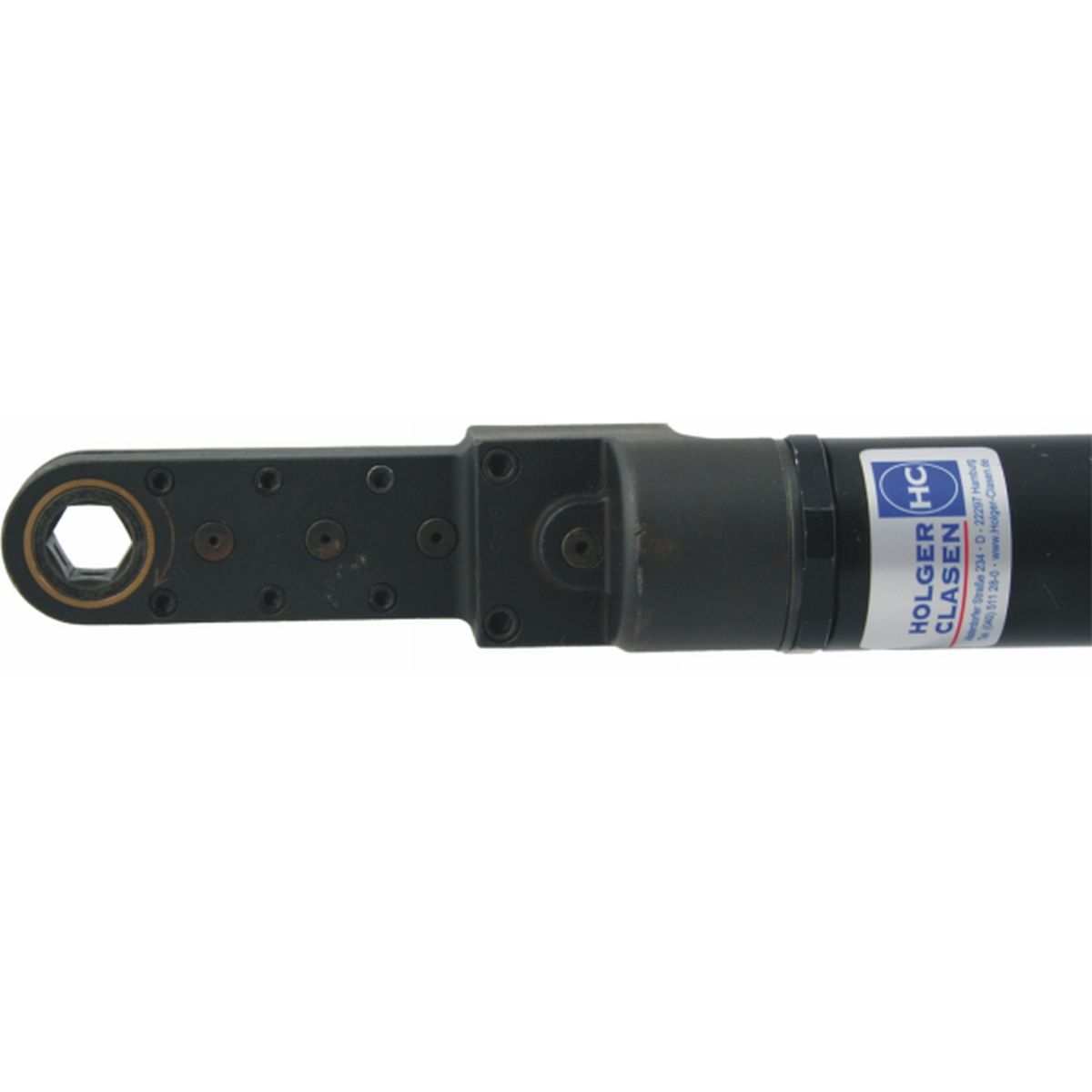

The flat screw head at an angle of 90° allows screws to be mounted in places that are difficult to reach.
For exact dimensions please refer to the technical data or our data sheet.
At 2.75 kg, the angle nutrunner has a good power-to-weight ratio.
The direction of rotation can be changed simply by changing the plug.
It is started comfortably via a long start lever.
The reaction torque at shutdown is extremely low, which relieves the worker of the burden of frequent screwing cycles.
Oil-free operation in sensitive areas is possible.
Technical specifications
Torque range: 12 - 33 Nm
Chuck: SW14
± 5% switch-off accuracy and high repeatability
Speed: 250 min-1
SW40/35FA - Flat head screwdriver for difficult to reach screw connections
Thanks to the torque range, this screwdriver can be used in a variety of ways in assembly on the assembly line.The torque can be easily adjusted with a clutch key.
The tool switches off the air supply reliably and with repeatable accuracy after reaching the nominal torque.
Thanks to the speed of 250 min-1 short screwing cycles are guaranteed.
The flat screw head at an angle of 90° allows screws to be mounted in places that are difficult to reach.
For exact dimensions please refer to the technical data or our data sheet.
At 2.75 kg, the angle nutrunner has a good power-to-weight ratio.
The direction of rotation can be changed simply by changing the plug.
It is started comfortably via a long start lever.
The reaction torque at shutdown is extremely low, which relieves the worker of the burden of frequent screwing cycles.
Oil-free operation in sensitive areas is possible.
| Torque range: | 12.0 - 33.0 Nm |
|---|---|
| Speed: | 250 min-1 |
| Power: | 400 W |
| Clutch: | Shut-off clutch |
| Start: | Valve lever |
| Construction form: | Straight, Flat angle head |
| Direction of rotation: | switchable |
| Chuck: | Female hex. SW14 |
| Housing Ø: | 46 mm |
| Dimension A: | 370 mm |
| Dimension B: | 134 mm |
| Dimension C: | 16 mm |
| Dimension D: | 18 mm |
| Weight: | 2.75 kg |
| Recommended hose Ø: | 13 mm |
| Air consumption: | 9 l/s |
| Sound pressure level: | 82 dB(A) |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Inlet air connection: | G 1/4" |
| Vibration: | < 2.5 m/s² |
