TG9/50P-SW12 Tapper SW12 and Screwing-in Tool % Action %
€1,000.00 *
| Power [W]: | 300 |
|---|---|
| Construction form: | Pistol |
| Chuck: | Quick-changing chuck SW12 (J1) |
| Start: | Taster + Andruck |
| Current: | Pneumatic |
Product number:
46102500
In stock:
3 ( * while supplies last )
Ölfreier Betrieb möglich
TG9/50P-SW12 Tapper SW12 and Screwing-in Tool % Action %
Applications

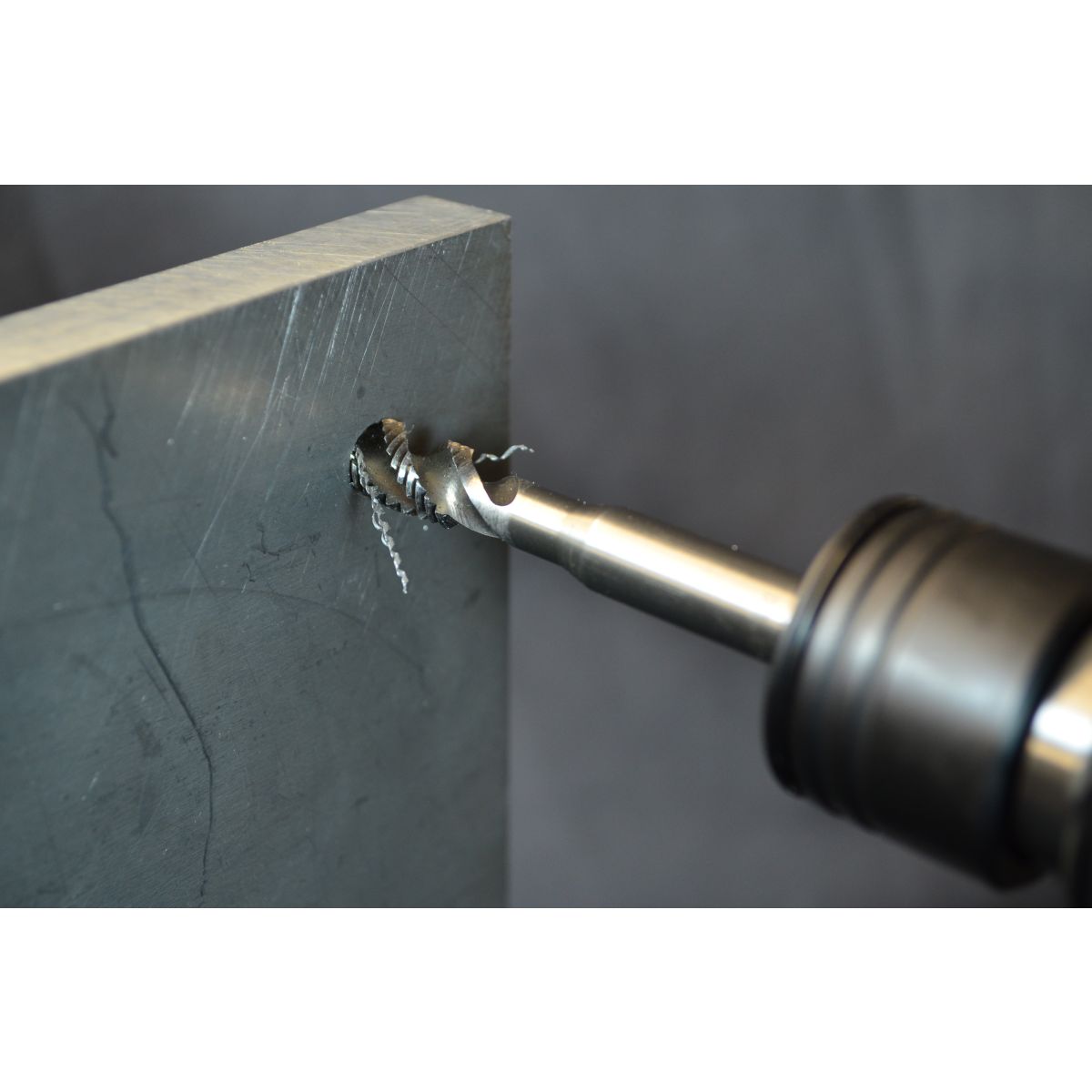

The Compressed Air Tapper TG9/50P-SW12 with quick-change chuck SW12 is a tool for tapping with standard holders or in combination with a socket setter for screwing in sockets. Materials such as plastic, wood, aluminium, bronze, brass, cast iron as well as alloyed and unalloyed steels can be machined. The tapper is used in the metal industry, car body construction, plastics processing, the wood industry, in apparatus and container construction as well as by repair stores.
Compressed air tapper TG9/50P-SW12 - for tapping screwing thread sockets
With quick change chuck SWF-SW12Cuts thread into:
Alloy steel: max. Ø max. 6 mm
Cast iron, unalloyed steel: Ø max. 8 mm
Aluminium, brass, bronze: Ø max. 12 mm
Also suitable for screwing in threaded sockets
Quick changing of the tap holder/tapper
Long service life with high performance.
Oil-free operation possible
Select the pistol design for work in horizontal working direction or threads over 6 - 8 mm. The back torque can be absorbed better with this design. In addition, it is advisable to install the second handle supplied. The air tapper is started comfortably by a button and pressure. Switching on at low speed makes it easier to place the tapper on the previously placed core hole. The tool is reversible, which can be achieved by pulling the tool. The return is at double speed, thus ensuring efficient work, especially during the production process.

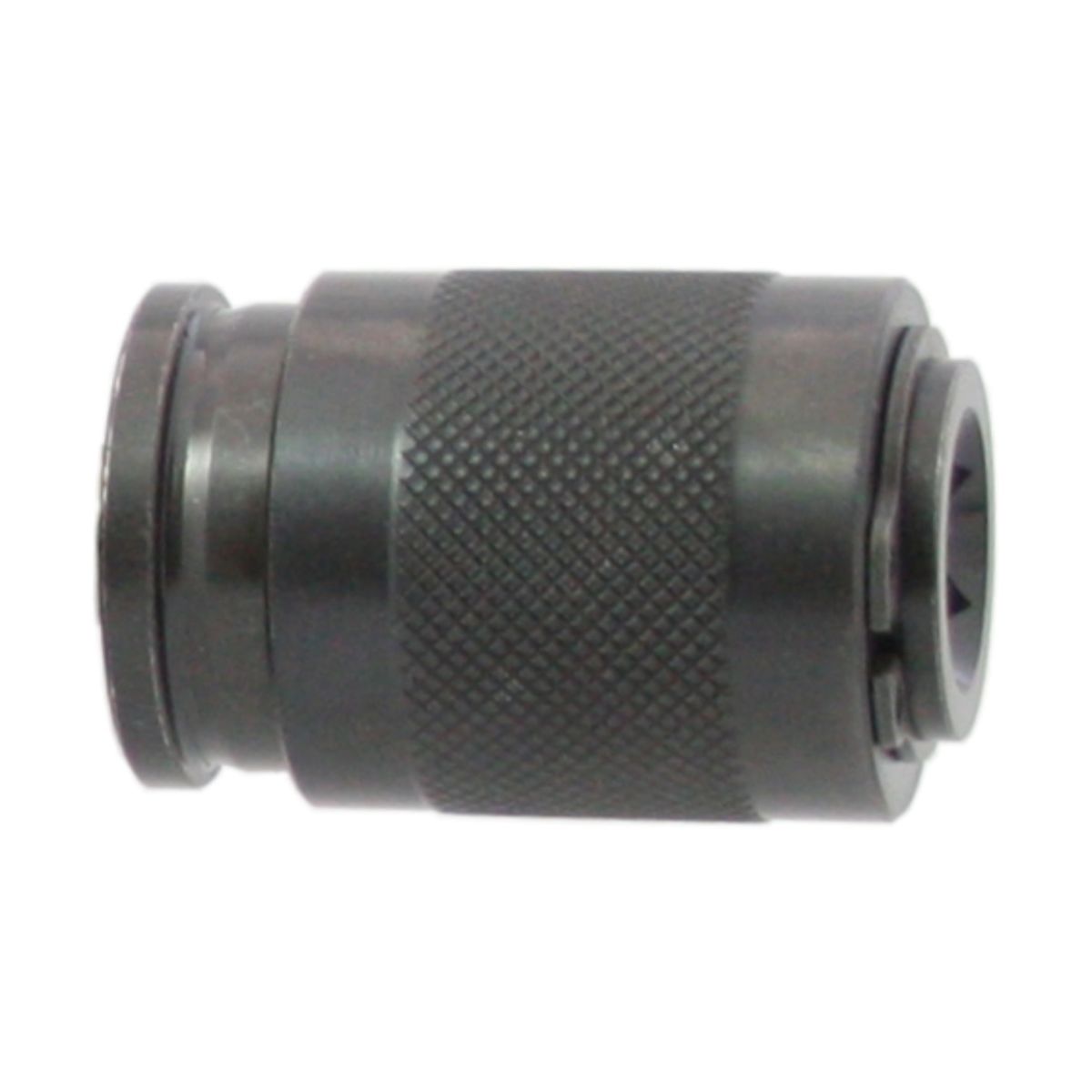

The holder is a quick-change chuck SWF-SW12 for standard holders. Select the desired tap holder from the accessories, it is not included in the delivery. It must be selected according to the used tap insert. Optionally, the holder can be equipped with a thread socket setter for screwing in thread sockets and stud bolts, which are frequently found in furniture manufacturing or engine construction, for example. Please contact us, we will be pleased to advise you for a perfectly fitting combination.
| Power [W]: | 300 |
|---|---|
| Construction form: | Pistol |
| Chuck: | Quick-changing chuck SW12 (J1) |
| Start: | Taster + Andruck |
| Direction of rotation: | Reversible |
| Speed: | 500 / 800 / min |
| Thread Steel max. Ø: | 8 mm |
| Height: | 155 mm |
| Length [mm]: | 230 |
| Housing Ø: | 38 mm |
| Weight [kg]: | 1.00 |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 9 l/s |
| Sound pressure level: | 78 dB(A) |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Information: | Useable as screwing-in tool |
| Inlet air connection: | G 1/4" |
| Vibration: | < 2.5 m/s² |
Tap holder is not included.
